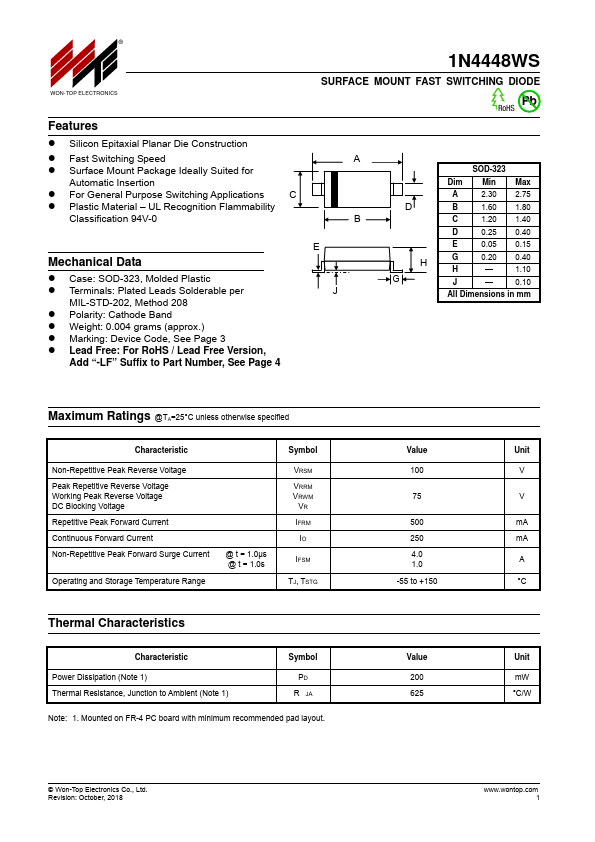

1N4448WS
1N4448WS is SURFACE MOUNT FAST SWITCHING DIODE manufactured by Won-Top Electronics.
Features
- Silicon Epitaxial Planar Die Construction
- Fast Switching Speed
- Surface Mount Package Ideally Suited for
Automatic Insertion
- For General Purpose Switching Applications
- Plastic Material
- UL Recognition Flammability
Classification 94V-0
Mechanical Data
- Case: SOD-323, Molded Plastic
- Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
- Polarity: Cathode Band
- Weight: 0.004 grams (approx.)
- Marking: Device Code, See Page 3
- Lead Free: For Ro HS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
SOD-323
Dim Min Max
2.30 2.75
1.60 1.80
1.20 1.40
0.25 0.40
0.05 0.15
0.20 0.40
- 1.10
-...
Representative 1N4448WS image (package may vary by manufacturer)
