WT78L06G
Features
:
- Maximum Output current IO: 0.1 A
- Output voltage VO: 5V~18V
- Continuous total dissipation: PD: 0.625 W (Ta = 25˚C )
Typical Application
Vin WT78LXX
Gnd Cin 0.33µF
Vout
Cout 0.1µF
Absolute Maximum Ratings
Parameter Input Voltage Output Current Power Dissipation Operating Junction Temperature Range Storage temperature range
..
WT78L05~09 WT78L12~18
WT78LXXG
TO-92
1. OUT
2. GND 3. IN
2 3
Ratings
Unit
30 V
100 m A
625 m W
0 ~ +125
°C
-55 ~ +150
°C
WEITRON
1/7 hpp://.weitron..tw
05-Nov-2010
WT78LXXG

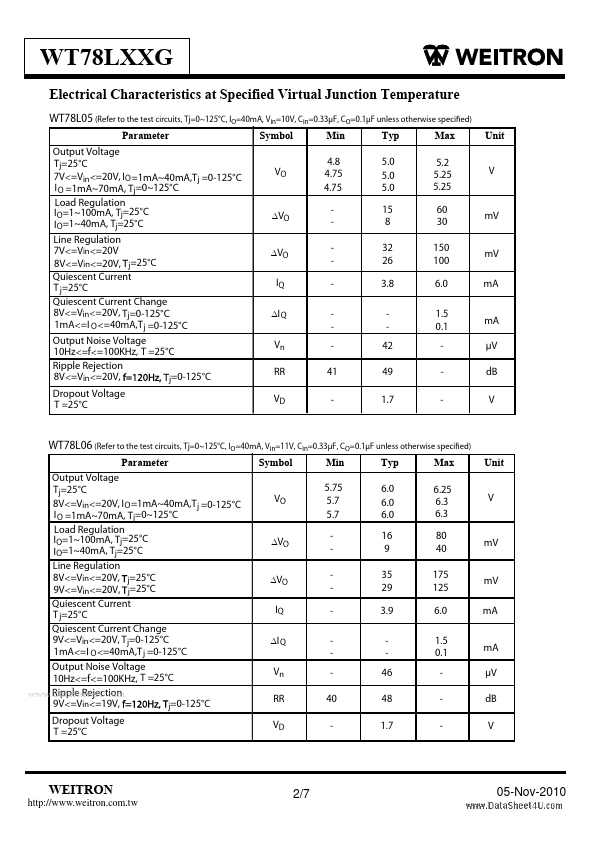

Electrical Characteristics at Specified Virtual Junction Temperature
WT78L05 (Refer to the test circuits, Tj=0~125°C, IO=40m A, Vin=10V, Cin=0.33µF, CO=0.1µF unless otherwise specified)
Parameter
Symbol
Min
Typ...
