WT6016 - Digital Monitor Controller

General Description

The WT6016 is a member of WT60XX microcontroller family.

It is specially designed for digital controlled multi-sync monitor.

Key Features

  • 8-bit 6502 compatible CPU, 4MHz operating frequency.
  • 16384 bytes ROM, 288 bytes SRAM.
  • 8MHz crystal oscillator.
  • 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs).
  • Sync signal processor with H+V separation, frequency calculation, H/V polarity detection/control.
  • Three free-running sync signal outputs for burn-in test (64kHz/62.5Hz, 48kHz/75Hz, 31kHz/60Hz).
  • Self-test pattern generator generates cross hatch picture.
  • DDC interface su.

📥 Download Datasheet

Other Datasheets by Weltrend Semiconductor

Part Number Description
WT6014 Digital Monitor Controller
WT6018 Digital Monitor Controller
WT60P1 Digital Monitor Controller
WT6116 digital controlled monitor microcontroller
WT6124 digital controlled monitor microcontroller
WT6132 digital controlled monitor microcontroller
WT6148 Digital Monitor Controller
WT6160 Digital Monitor Controller
WT61P4 Embedded Micro Controller
WT61P6 Embedded Micro-Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

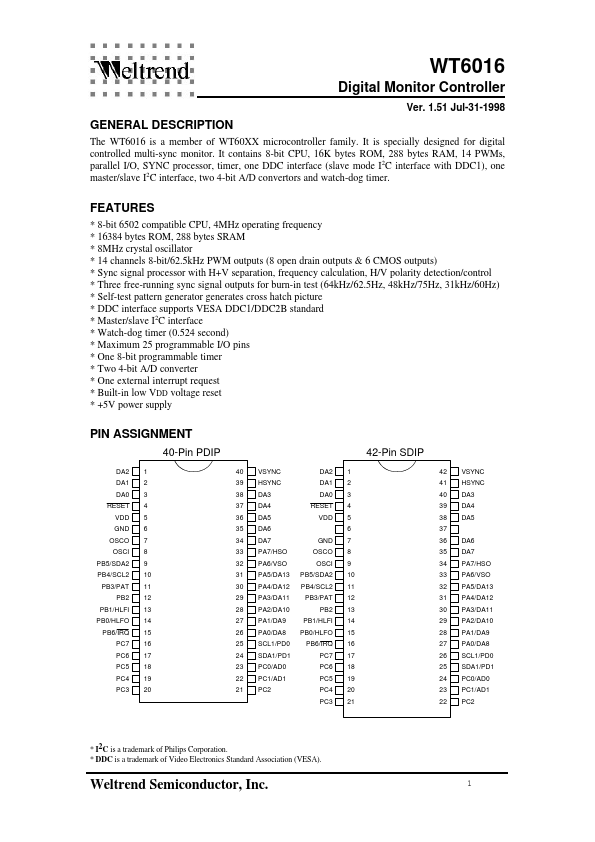

WT6016 Digital Monitor Controller Ver. 1.51 Jul-31-1998 GENERAL DESCRIPTION The WT6016 is a member of WT60XX microcontroller family. It is specially designed for digital controlled multi-sync monitor. It contains 8-bit CPU, 16K bytes ROM, 288 bytes RAM, 14 PWMs, parallel I/O, SYNC processor, timer, one DDC interface (slave mode I2C interface with DDC1), one master/slave I2C interface, two 4-bit A/D convertors and watch-dog timer. FEATURES * 8-bit 6502 compatible CPU, 4MHz operating frequency * 16384 bytes ROM, 288 bytes SRAM * 8MHz crystal oscillator * 14 channels 8-bit/62.
