WT8048 - Display Power Management Signaling Detector

General Description

The WT8048 is a 8 pin P-DIP package IC, designed for the application of Power Saving Monitor or Green Monitor.

As per DPMS proposal, the WT8048 provides a detective circuit of monitor power management for the convenience of designers in designing Power Saving Monitor.

Key Features

  • { Accepting two seperated H&V synchronous signals with positive/ negative polarity. { Capable of processing horizontal frequency between 0Hz to 100kHz, and vertical frequency between 0Hz to 100Hz. { Power Saving mode - It can detect the conditions of monitor to decide which will be selected as following: ON mode / STAND_BY mode /.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Weltrend Semiconductor

Part Number Description
WT8043 Synchronous Signal discriminator
WT8045 Synchronous Signal Discriminator and Power Saving Detector
WT8072 PIR CONTROLLER
WT8076 Passive Infrared (PIR) Controller
WT8871-C Video Display Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

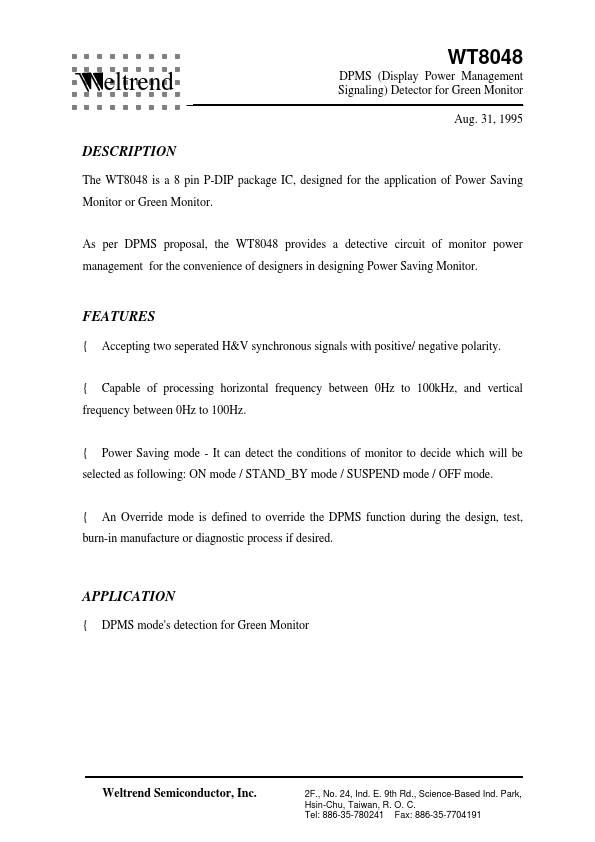

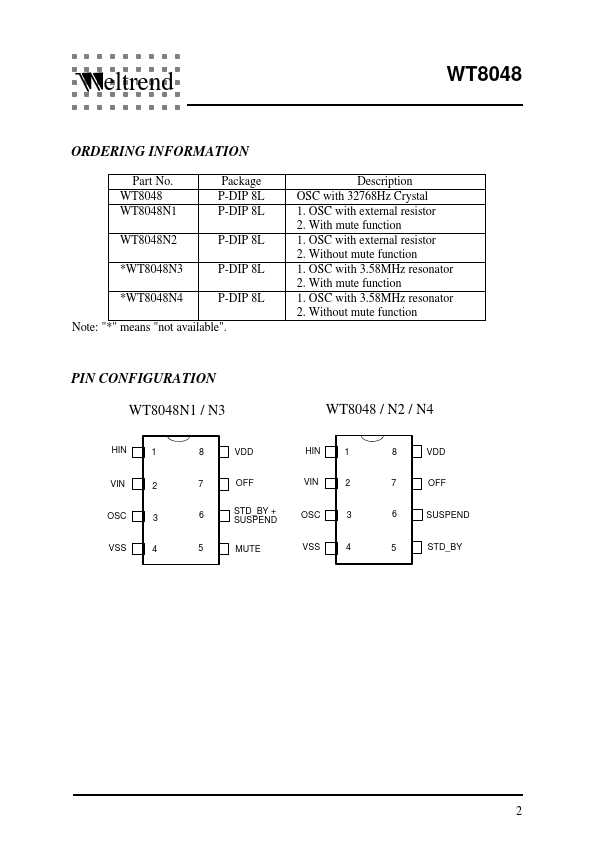

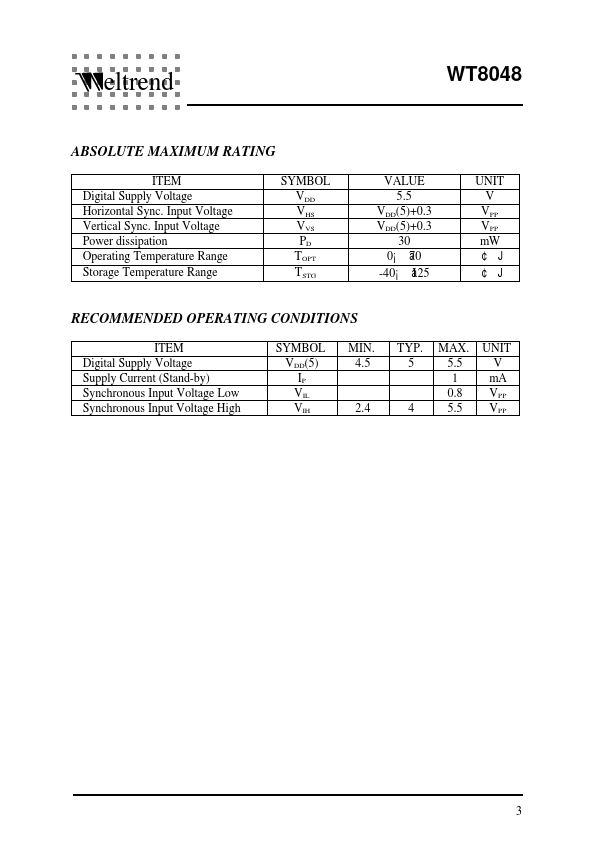

eltrend WT8048 DPMS (Display Power Management Signaling) Detector for Green Monitor Aug. 31, 1995 DESCRIPTION The WT8048 is a 8 pin P-DIP package IC, designed for the application of Power Saving Monitor or Green Monitor. As per DPMS proposal, the WT8048 provides a detective circuit of monitor power management for the convenience of designers in designing Power Saving Monitor. FEATURES { Accepting two seperated H&V synchronous signals with positive/ negative polarity. { Capable of processing horizontal frequency between 0Hz to 100kHz, and vertical frequency between 0Hz to 100Hz. { Power Saving mode - It can detect the conditions of monitor to decide which will be selected as following: ON mode / STAND_BY mode / SUSPEND mode / OFF mode.
