WT8072 - PIR CONTROLLER

General Description

WT 8072 is a PIR (passive infra-red) controller, using analog mixing digital design technique and manufactures by CMOS process which can either drive TRIAC or RELAY depending on users' choice.

With special noise immunity technique, WT8072 is the most stable PIR controller you can find on the market.

Key Features

  • HIGH NOISE.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Weltrend Semiconductor

Part Number Description
WT8076 Passive Infrared (PIR) Controller
WT8043 Synchronous Signal discriminator
WT8045 Synchronous Signal Discriminator and Power Saving Detector
WT8048 Display Power Management Signaling Detector
WT8871-C Video Display Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

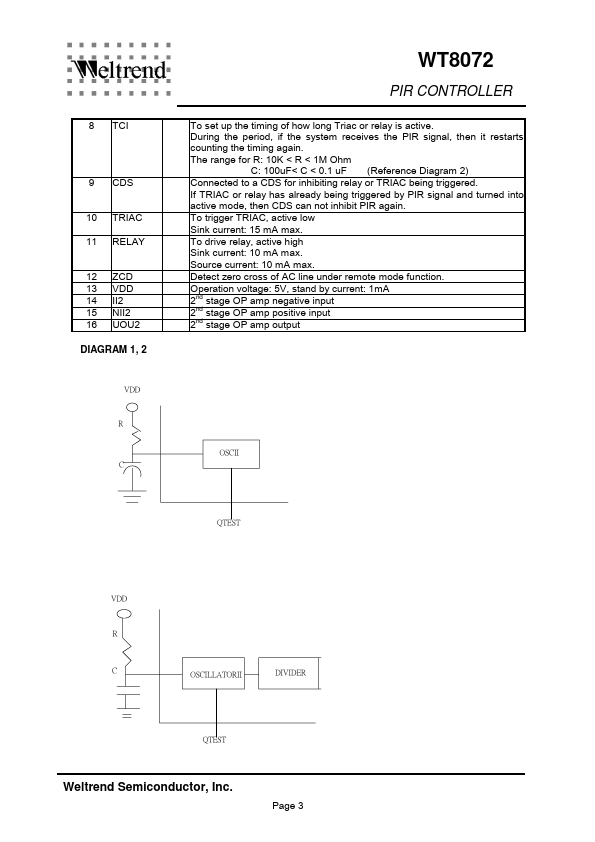

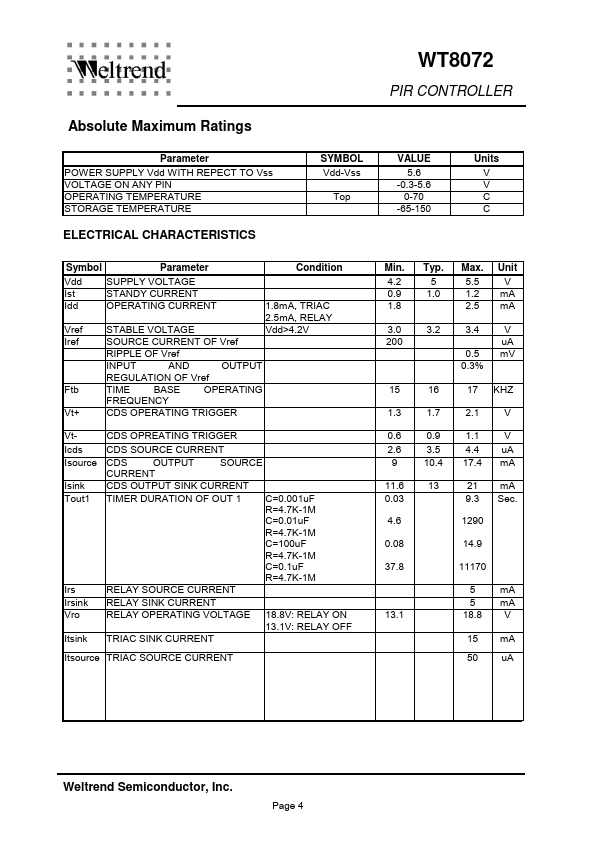

WT8072 PIR CONTROLLER GENERAL DESCRIPTION WT 8072 is a PIR (passive infra-red) controller, using analog mixing digital design technique and manufactures by CMOS process which can either drive TRIAC or RELAY depending on users' choice. With special noise immunity technique, WT8072 is the most stable PIR controller you can find on the market. More than this, there are few components needed in its application circuit which can reduce material cost and increase competitive. FEATURES *HIGH NOISE IMMUNITY. *DRIVE EITHER RELAY OR TRIAC. *ADJUSTABLE LIGHT ON DURATION. *TRIAC CAN BE EITHER SHUNT OR SERIAL CONNECTED. *PIR INPUT. *CDS INPUT.
