ISD1700 Datasheet | Winbond

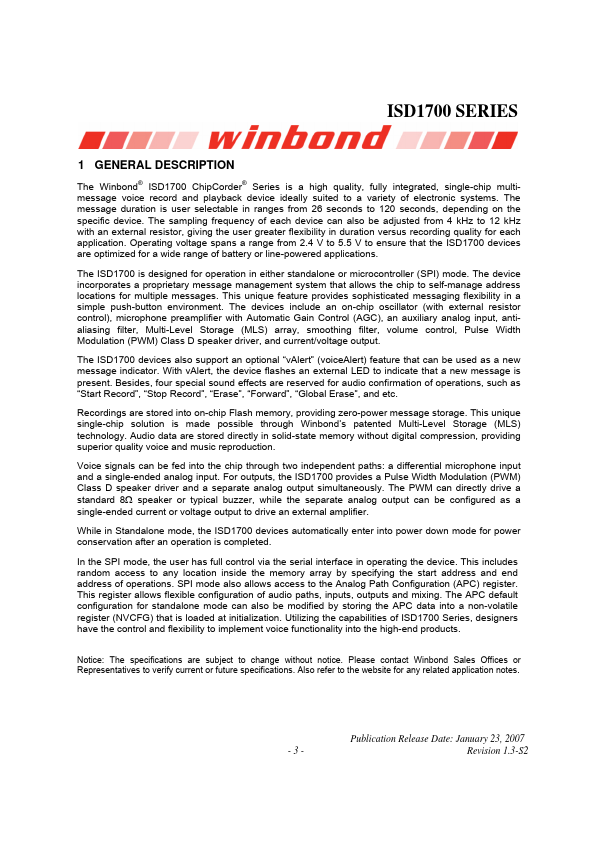

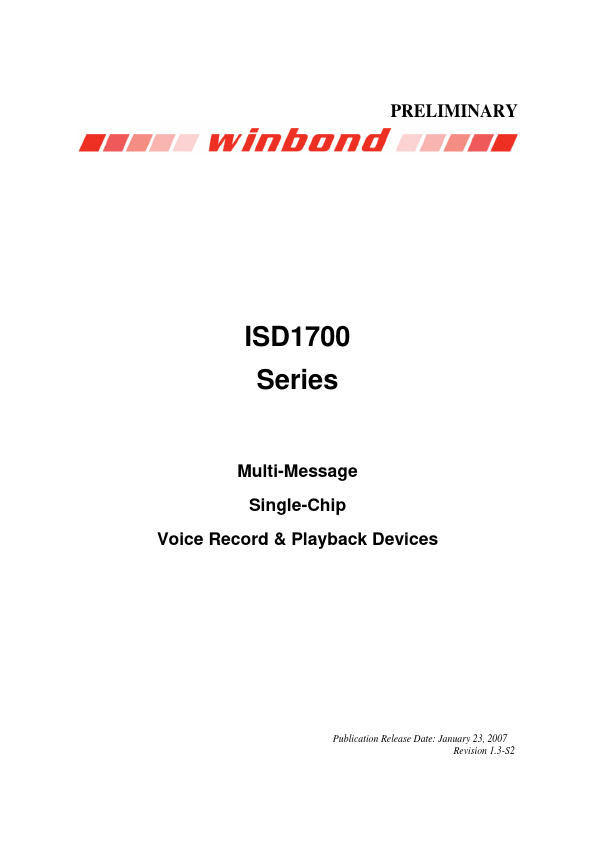

PRELIMINARY ISD1700 Series Multi-Message Single-Chip Voice Record & Playback Devices Publication Release Date: January 23, 2007 Revision 1.3-S2 ISD1700 SERIES 1 GENERAL DESCRIPTION The Winbond® ISD1700 ChipCorder® Series is a high quality, fully integrated, single-chip multimessage voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating...
