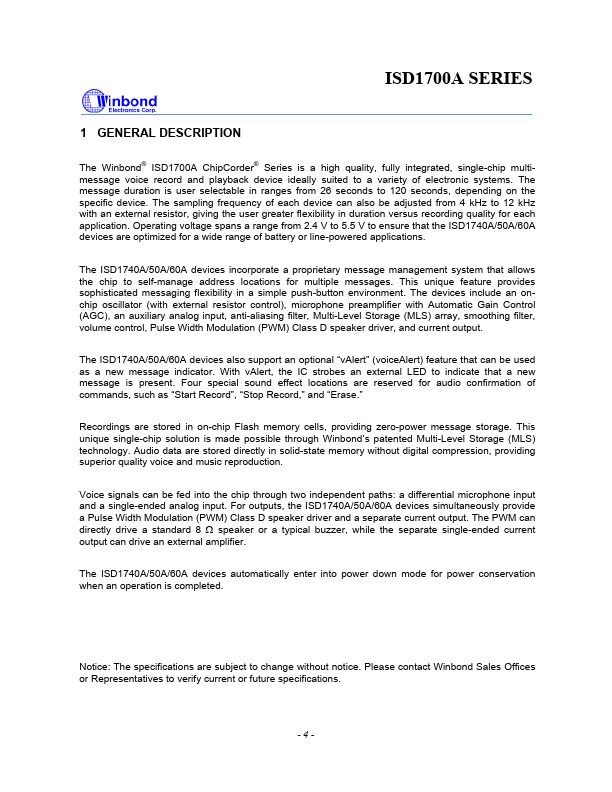

ISD1700A Overview
The Winbond® ISD1700A ChipCorder® Series is a high quality, fully integrated, single-chip multimessage voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving...

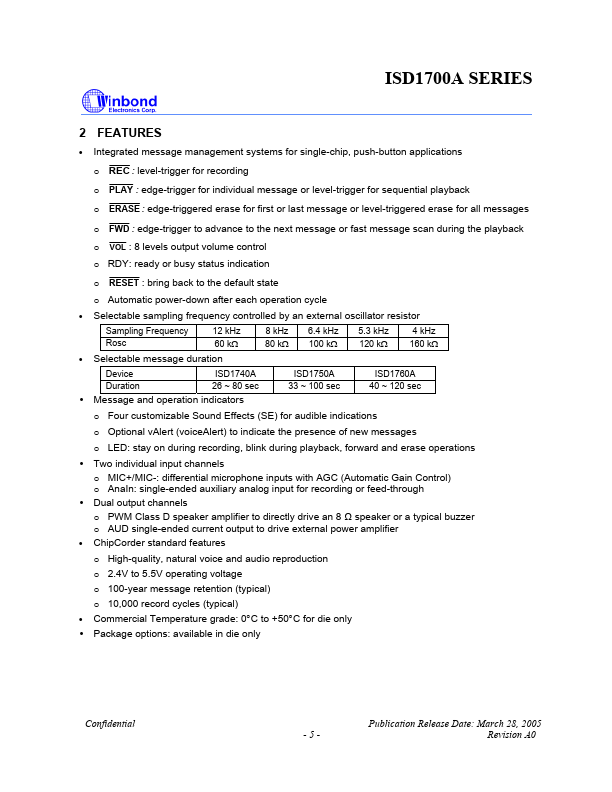

ISD1700A Key Features
- Integrated message management systems for single-chip, push-button
