25Q128JVBM Overview

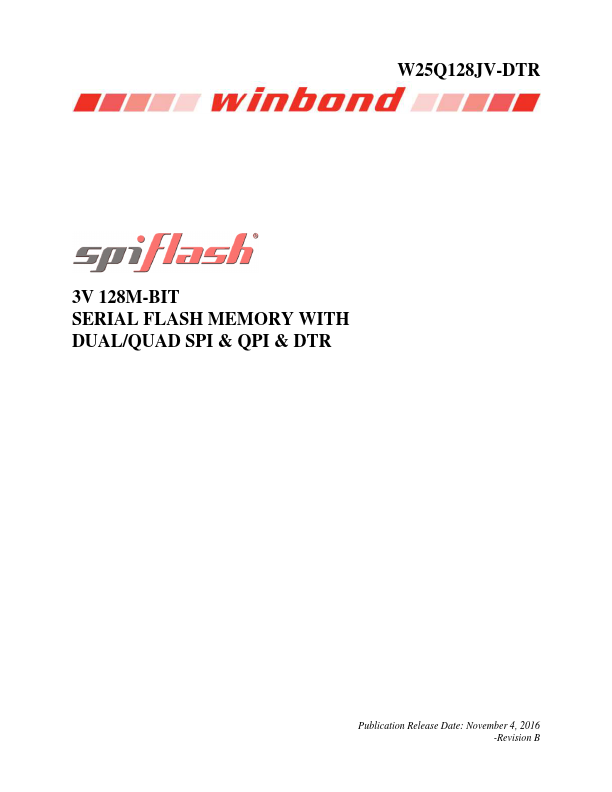

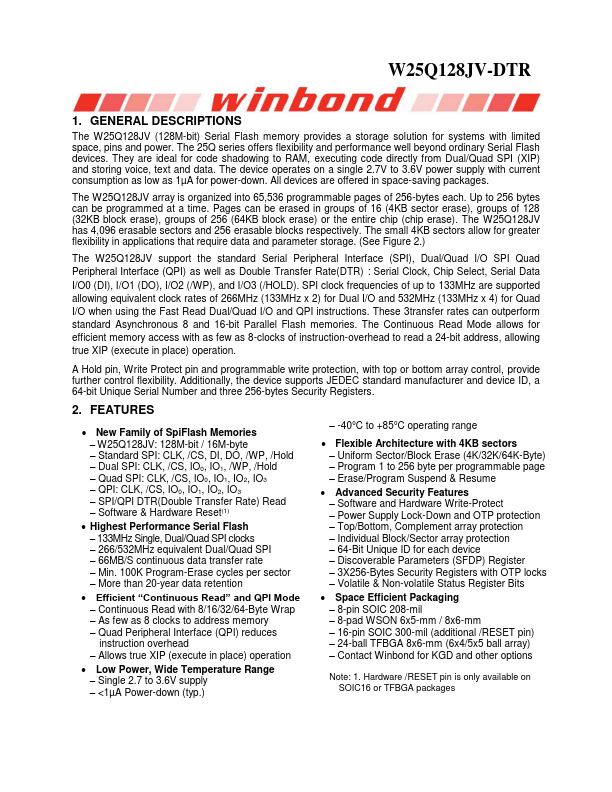

W25Q128JV-DTR 3V 128M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI & DTR Publication Release Date: November 4, 2016 -Revision B W25Q128JV-DTR 1. GENERAL DESCRIPTIONS The W25Q128JV (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power.
25Q128JVBM Key Features
- New Family of SpiFlash Memories
- W25Q128JV: 128M-bit / 16M-byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- QPI: CLK, /CS, IO0, IO1, IO2, IO3
- SPI/QPI DTR(Double Transfer Rate) Read
- Software & Hardware Reset(1)
- Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
