25Q64JVCJQ

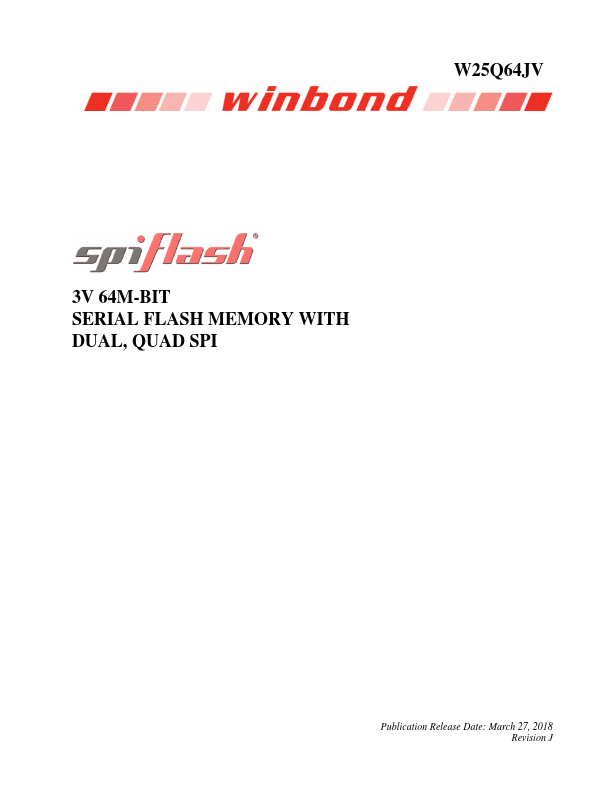

25Q64JVCJQ is 3V 64M-BIT SERIAL FLASH MEMORY manufactured by Winbond.
- Part of the 25Q64JVSIQ comparator family.
- Part of the 25Q64JVSIQ comparator family.

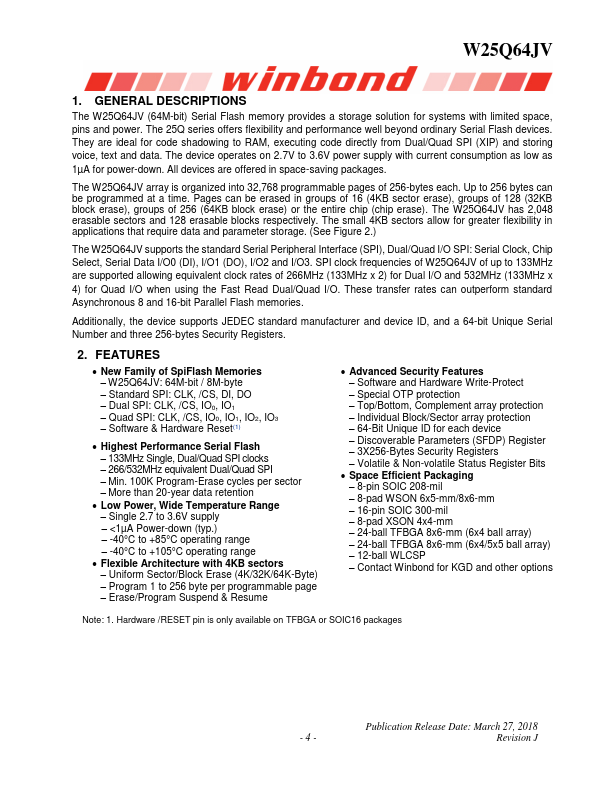

FEATURES
- New Family of Spi Flash Memories
- W25Q64JV: 64M-bit / 8M-byte
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset(1)
- Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI
- Min. 100K Program-Erase cycles per sector
- More than 20-year data retention
- Low Power, Wide Temperature Range
- Single 2.7 to 3.6V supply
- <1µA Power-down (typ.)
- -40°C to +85°C operating range
- -40°C to +105°C operating range
- Flexible Architecture with 4KB sectors
- Uniform Sector/Block Erase (4K/32K/64K-Byte)
- Program 1 to 256 byte per programmable page
- Erase/Program Suspend & Resume
- Advanced Security Features
- Software and Hardware Write-Protect
- Special OTP protection
- Top/Bottom, plement array protection
- Individual Block/Sector array protection
- 64-Bit Unique ID for each device
- Discoverable Parameters (SFDP) Register
- 3X256-Bytes Security Registers
- Volatile & Non-volatile Status Register Bits
- Space Efficient Packaging
- 8-pin SOIC 208-mil
- 8-pad WSON 6x5-mm/8x6-mm
- 16-pin SOIC 300-mil
- 8-pad XSON 4x4-mm
- 24-ball TFBGA 8x6-mm (6x4 ball array)
- 24-ball TFBGA 8x6-mm (6x4/5x5...
