25Q64JVIQ Datasheet | Winbond

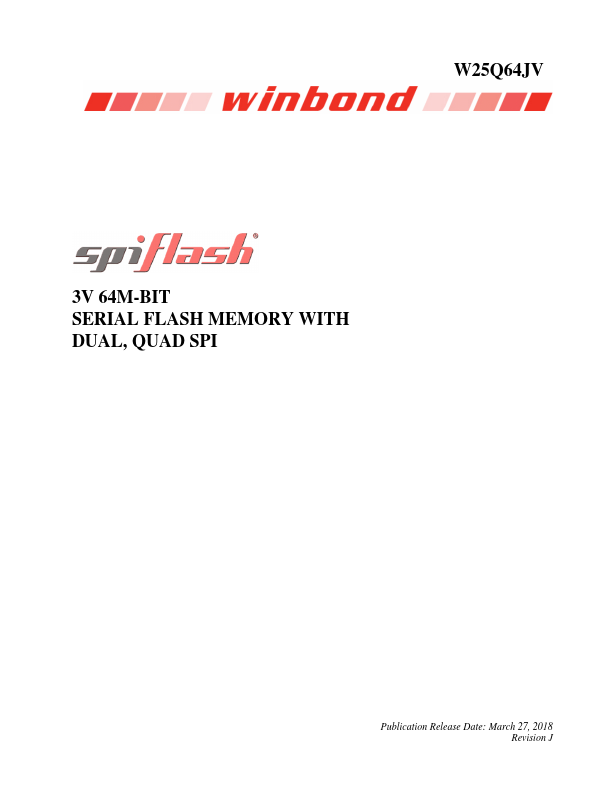

W25Q64JV 3V 64M-BIT SERIAL FLASH MEMORY WITH DUAL, QUAD SPI Publication Release Date: March 27, 2018 Revision J W25Q64JV 1. GENERAL DESCRIPTIONS The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. All devices are offered in space-saving packages. The W25Q64JV array is organized into 32,768 programmable...
