W25N02KVTBIR Overview

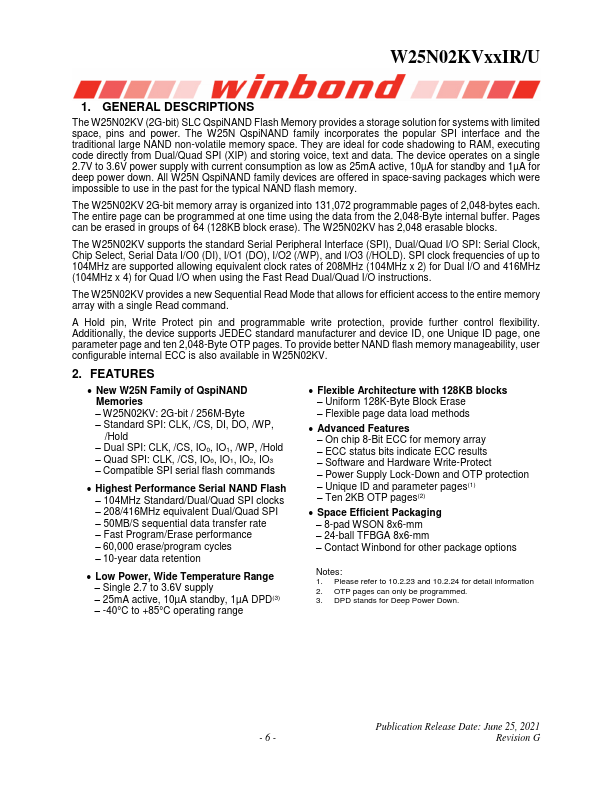

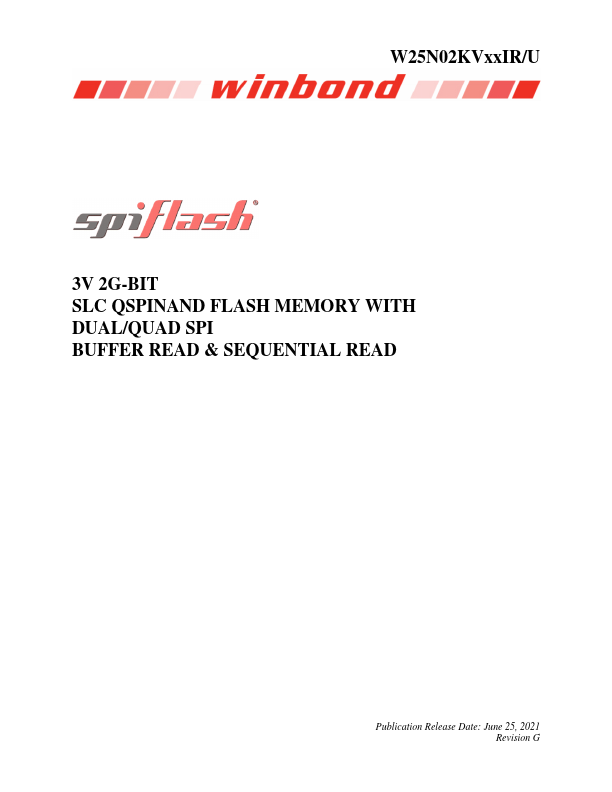

W25N02KVxxIR/U 3V 2G-BIT SLC QSPINAND FLASH MEMORY WITH DUAL/QUAD SPI BUFFER READ & SEQUENTIAL READ Publication Release Date: June 25, 2021 Revision G W25N02KVxxIR/U 1. GENERAL DESCRIPTIONS The W25N02KV (2G-bit) SLC QspiNAND Flash Memory provides a storage solution for systems with limited space, pins and power.
W25N02KVTBIR Key Features
- New W25N Family of QspiNAND Memories
- W25N02KV: 2G-bit / 256M-Byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- patible SPI serial flash mands
- Highest Performance Serial NAND Flash
- 104MHz Standard/Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
- 50MB/S sequential data transfer rate
