W25N02KVTCIR
W25N02KVTCIR is 3V 2G-BIT SLC QSPINAND FLASH MEMORY manufactured by Winbond.
- Part of the W25N02KVZEIR comparator family.
- Part of the W25N02KVZEIR comparator family.

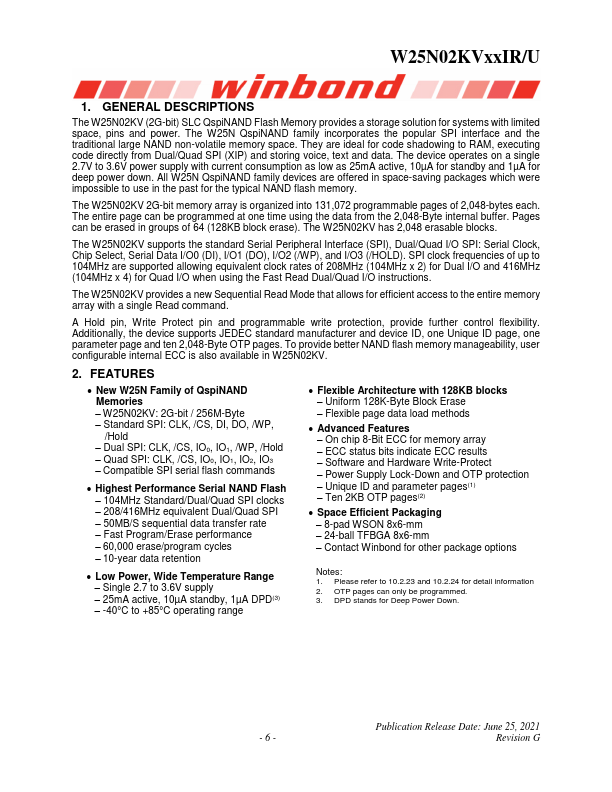

FEATURES
- New W25N Family of Qspi NAND Memories
- W25N02KV: 2G-bit / 256M-Byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- patible SPI serial flash mands
- Highest Performance Serial NAND Flash
- 104MHz Standard/Dual/Quad SPI clocks
- 208/416MHz equivalent Dual/Quad SPI
- 50MB/S sequential data transfer rate
- Fast Program/Erase performance
- 60,000 erase/program cycles
- 10-year data retention
- Low Power, Wide Temperature Range
- Single 2.7 to 3.6V supply
- 25m A active, 10µA standby, 1µA DPD(3)
- -40°C to +85°C operating range
- Flexible Architecture with 128KB blocks
- Uniform 128K-Byte Block Erase
- Flexible page data load methods
- Advanced Features
- On chip 8-Bit ECC for memory array
- ECC status bits indicate ECC results
- Software and Hardware Write-Protect
- Power Supply Lock-Down and OTP protection
- Unique ID and parameter...
