W25Q80BWSNIG - 1.8V 8M-BIT SERIAL FLASH MEMORY

This page provides the datasheet information for the W25Q80BWSNIG, a member of the W25Q80BW 1.8V 8M-BIT SERIAL FLASH MEMORY family.

Datasheet Summary

Description

5 2.

Features

  • 5 3.

📥 Download Datasheet

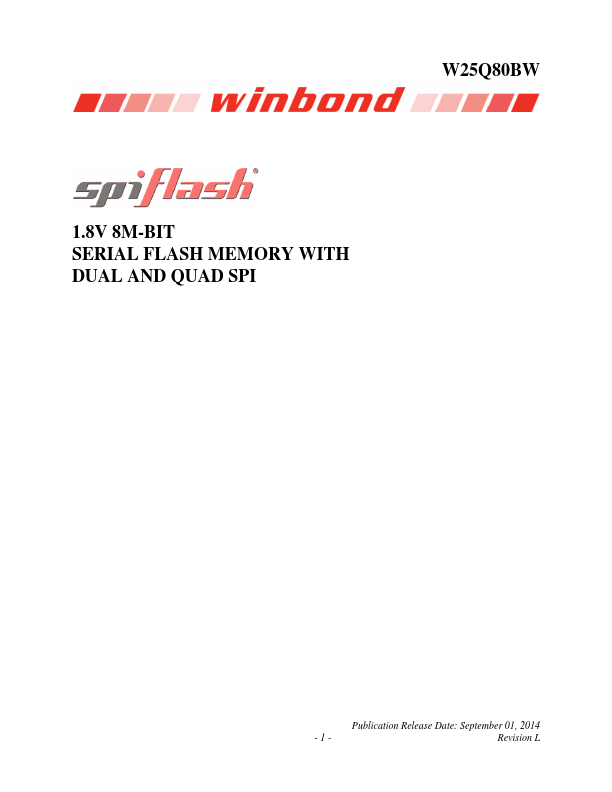

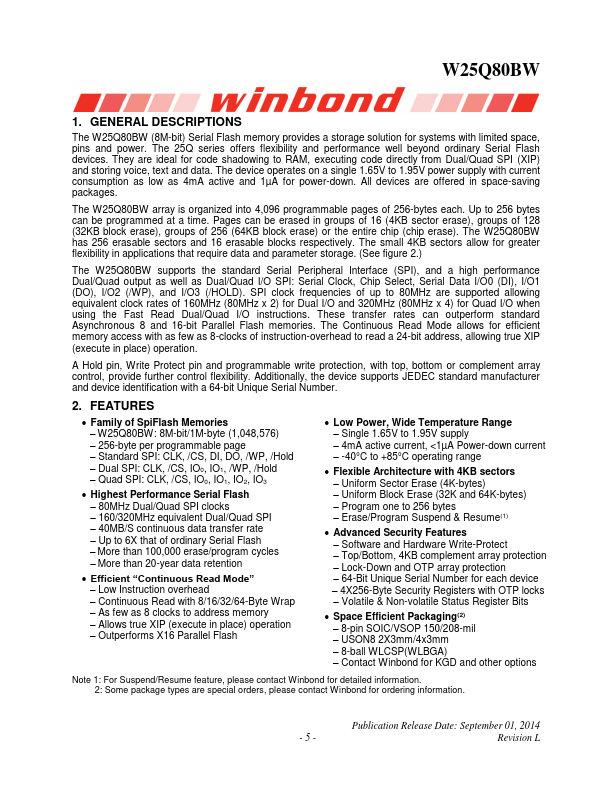

Datasheet preview – W25Q80BWSNIG

Datasheet Details

Part number W25Q80BWSNIG
Manufacturer Winbond
File Size 1.08 MB
Description 1.8V 8M-BIT SERIAL FLASH MEMORY
Datasheet download datasheet W25Q80BWSNIG Datasheet
