W25Q80BWSVIG - 1.8V 8M-BIT SERIAL FLASH MEMORY

This page provides the datasheet information for the W25Q80BWSVIG, a member of the W25Q80BW 1.8V 8M-BIT SERIAL FLASH MEMORY family.

Datasheet Summary

Description

5 2.

Features

  • 5 3.

📥 Download Datasheet

Datasheet preview – W25Q80BWSVIG

Datasheet Details

Part number W25Q80BWSVIG
Manufacturer Winbond
File Size 1.08 MB
Description 1.8V 8M-BIT SERIAL FLASH MEMORY
Datasheet download datasheet W25Q80BWSVIG Datasheet
Additional preview pages of the W25Q80BWSVIG datasheet.

📁 Similar Datasheet

  • W2512 - Precision Thin Film Chip Resistors (TT electronics)
  • W255 - 200-MHz 24-Output Buffer (Cypress Semiconductor)
  • W256 - 12 Output Buffer for 2 DDR and 3 SRAM DIMMS (Cypress Semiconductor)
  • W25NM60N - STW25NM60N (STMicroelectronics)
  • W25X16 - Serial Flash Memory (Winbond Electronics)
  • W25X16A - Serial Flash Memory (Winbond Electronics)
  • W25X32 - Serial Flash Memory (Winbond Electronics)
  • W25X64 - Serial Flash Memory (Winbond Electronics)
Other Datasheets by Winbond

Full PDF Text Transcription

Click to expand full text

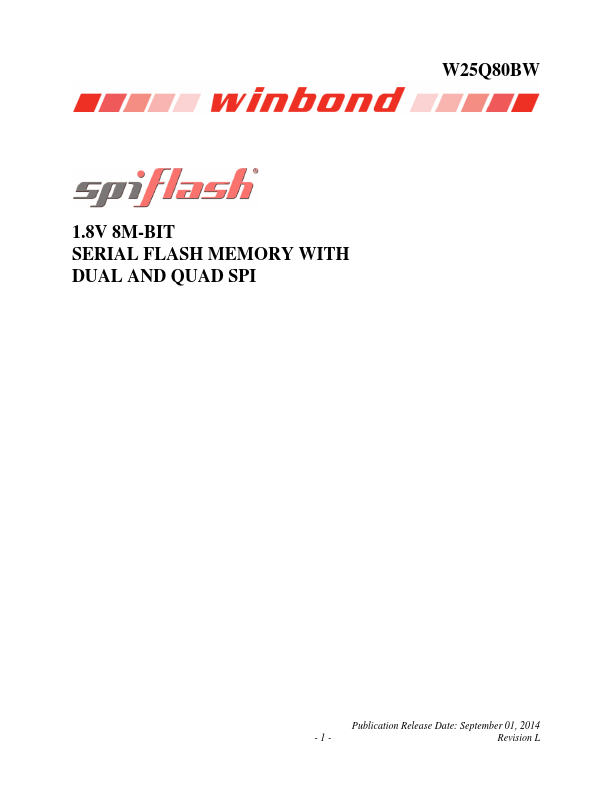

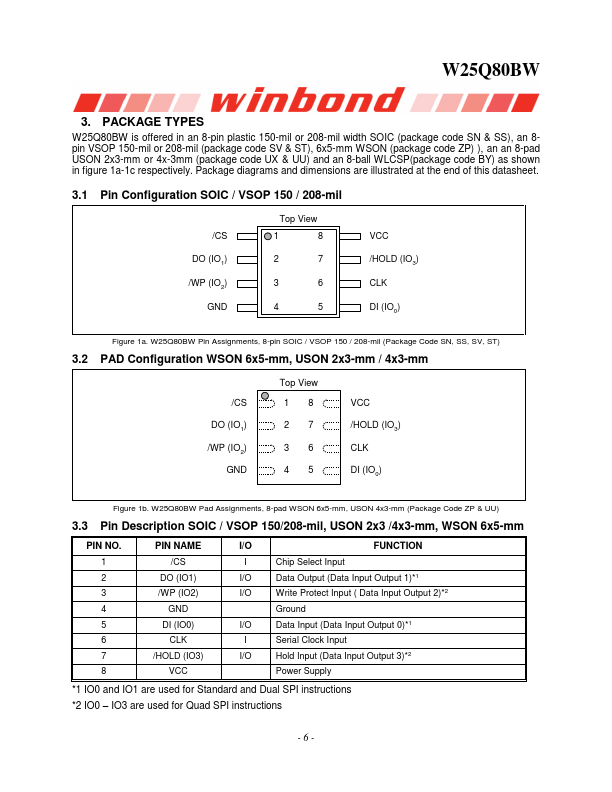

W25Q80BW 1.8V 8M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI Publication Release Date: September 01, 2014 -1- Revision L W25Q80BW Table of Contents 1. GENERAL DESCRIPTIONS............................................................................................................. 5 2. FEATURES ....................................................................................................................................... 5 3. PACKAGE TYPES ............................................................................................................................ 6 3.1 Pin Configuration SOIC / VSOP 150 / 208-mil ..................................................................... 6 3.2 PAD Configuration WSON 6x5-mm, USON 2x3-mm / 4x3-mm ........................................
