W25X80LSSEG - 2.5V SERIAL FLASH MEMORY

Download the W25X80LSSEG datasheet PDF (W25X80L included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 2.5v serial flash memory.

Description

2.

Features

  • 4 3. PIN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W25X80L_Winbond.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • W25X16 - Serial Flash Memory (Winbond Electronics)
  • W25X16A - Serial Flash Memory (Winbond Electronics)
  • W25X32 - Serial Flash Memory (Winbond Electronics)
  • W25X64 - Serial Flash Memory (Winbond Electronics)
  • W2512 - Precision Thin Film Chip Resistors (TT electronics)
  • W255 - 200-MHz 24-Output Buffer (Cypress Semiconductor)
  • W256 - 12 Output Buffer for 2 DDR and 3 SRAM DIMMS (Cypress Semiconductor)
  • W25NM60N - STW25NM60N (STMicroelectronics)
Other Datasheets by Winbond

Full PDF Text Transcription

Click to expand full text

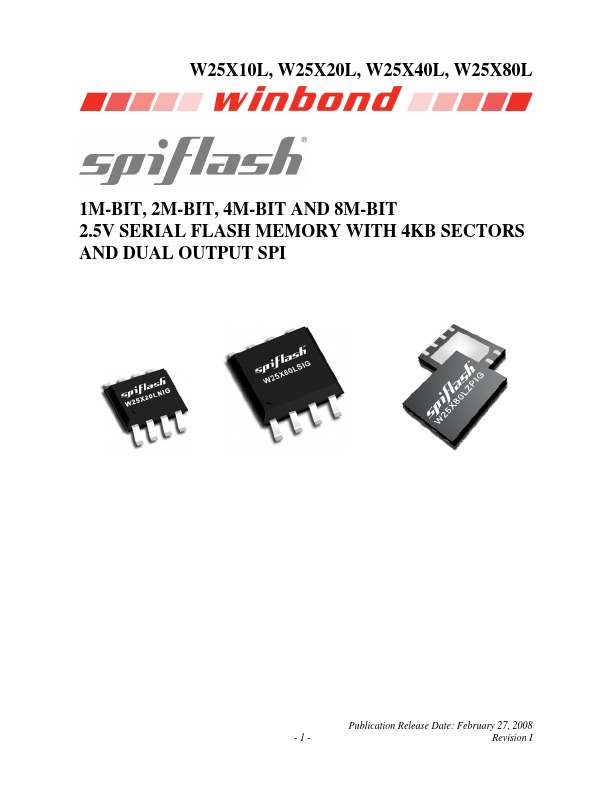

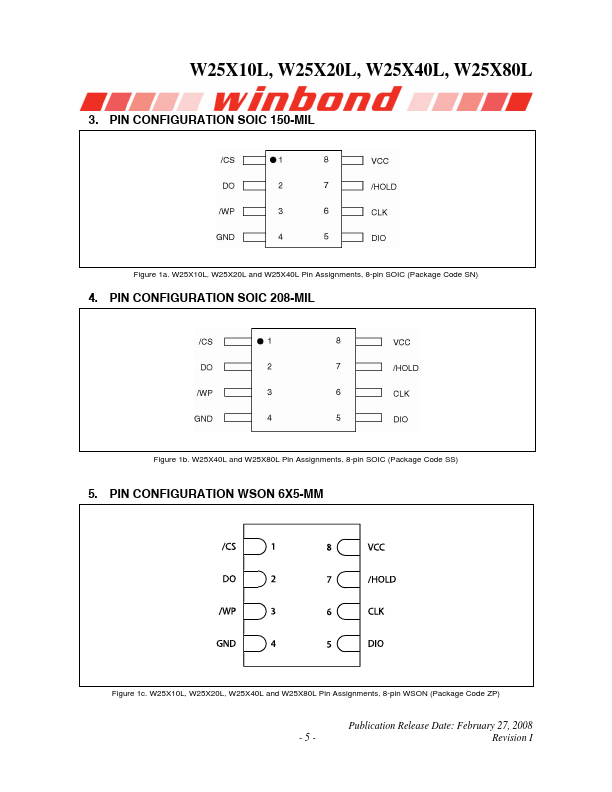

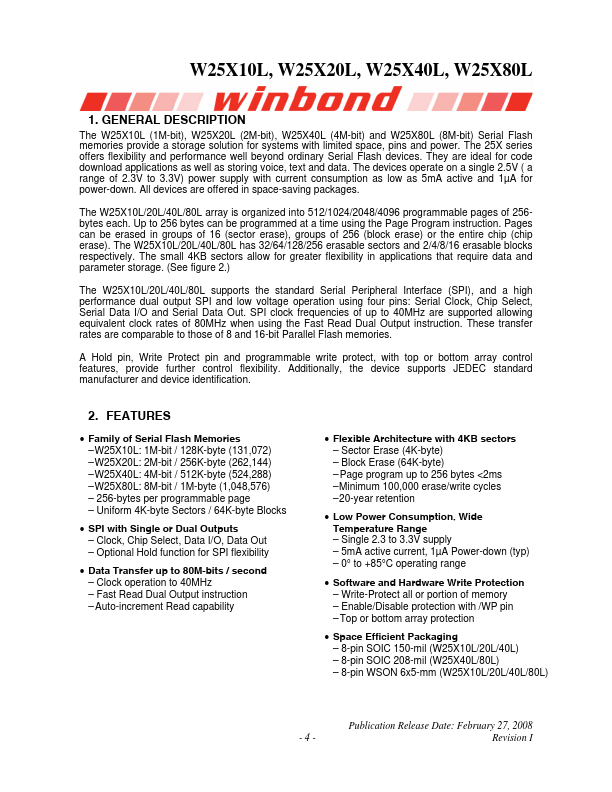

W25X10L, W25X20L, W25X40L, W25X80L 1M-BIT, 2M-BIT, 4M-BIT AND 8M-BIT 2.5V SERIAL FLASH MEMORY WITH 4KB SECTORS AND DUAL OUTPUT SPI Publication Release Date: February 27, 2008 -1- Revision I W25X10L, W25X20L, W25X40L, W25X80L Table of Contents 1. GENERAL DESCRIPTION ......................................................................................................... 4 2. FEATURES ................................................................................................................................. 4 3. PIN CONFIGURATION SOIC 150-MIL....................................................................................... 5 4. PIN CONFIGURATION SOIC 208-MIL....................................................................................... 5 5.
