W29N08GZ - 8G-BIT 1.8V NAND FLASH MEMORY

Download the W29N08GZ datasheet PDF. This datasheet also covers the W29N08GW variant, as both devices belong to the same 8g-bit 1.8v nand flash memory family and are provided as variant models within a single manufacturer datasheet.

Description

7 2.

Features

  • 7 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W29N08GW-Winbond.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number W29N08GZ
Manufacturer Winbond
File Size 1.82 MB
Description 8G-BIT 1.8V NAND FLASH MEMORY
Datasheet download datasheet W29N08GZ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W29NK50Z N-CHANNEL SuperMESH MOSFET STMicroelectronics
W29NK50ZD N-CHANNEL SuperMESH MOSFET STMicroelectronics
W2911 (W29xx) Oscillator MF Electronics
W2912 (W29xx) Oscillator MF Electronics
W2913 (W29xx) Oscillator MF Electronics

Other Datasheets by Winbond

Part Number Description
W29N08GV NAND FLASH MEMORY
W29N08GW 8G-BIT 1.8V NAND FLASH MEMORY
W29N01GV 1G-BIT 3.3V NAND FLASH MEMORY
W29N01GW 1G-BIT 1.8V NAND FLASH MEMORY
W29N01GZ 1G-BIT 1.8V NAND FLASH MEMORY

Full PDF Text Transcription

Click to expand full text

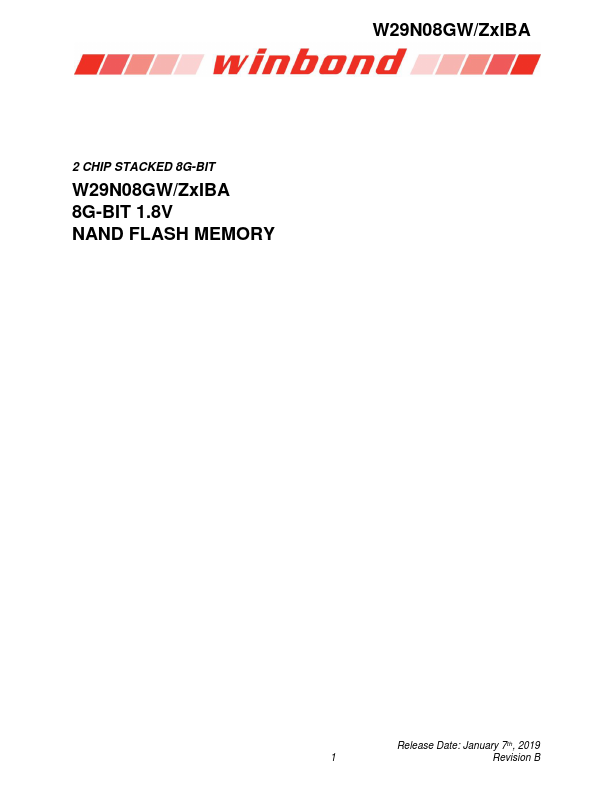

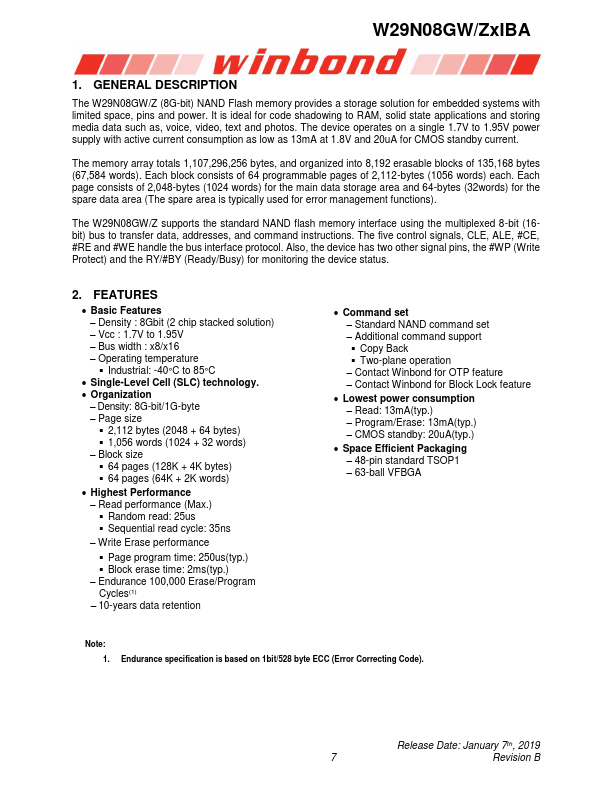

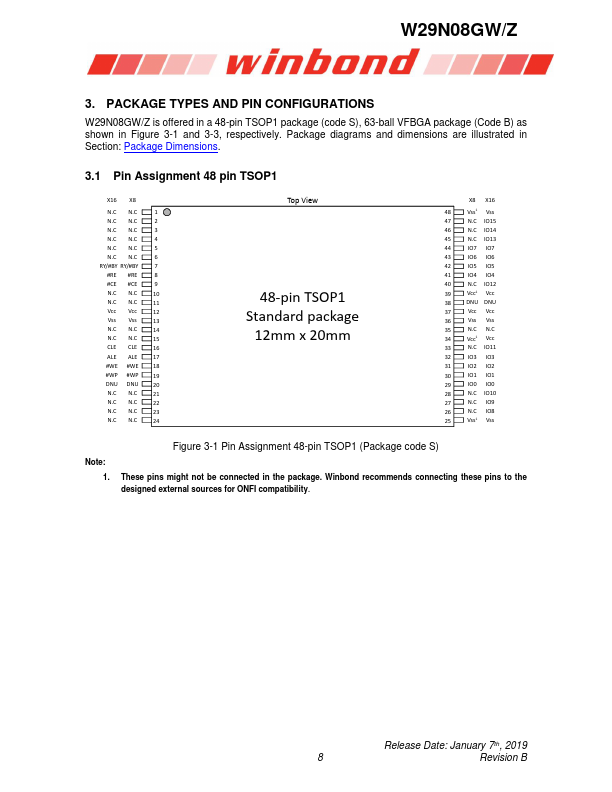

2 CHIP STACKED 8G-BIT W29N08GW/Z 8G-BIT 1.8V NAND FLASH MEMORY W29N08GW/Z Release Date: April 25th, 2018 1 Revision A W29N08GW/Z Table of Contents 1. GENERAL DESCRIPTION ............................................................................................................... 7 2. FEATURES....................................................................................................................................... 7 3. PACKAGE TYPES AND PIN CONFIGURATIONS .......................................................................... 8 3.1 Pin Assignment 48 pin TSOP1 ............................................................................................. 8 3.2 Pin Assignment 63 ball VFBGA (x8) .................................................................................
