W536060P

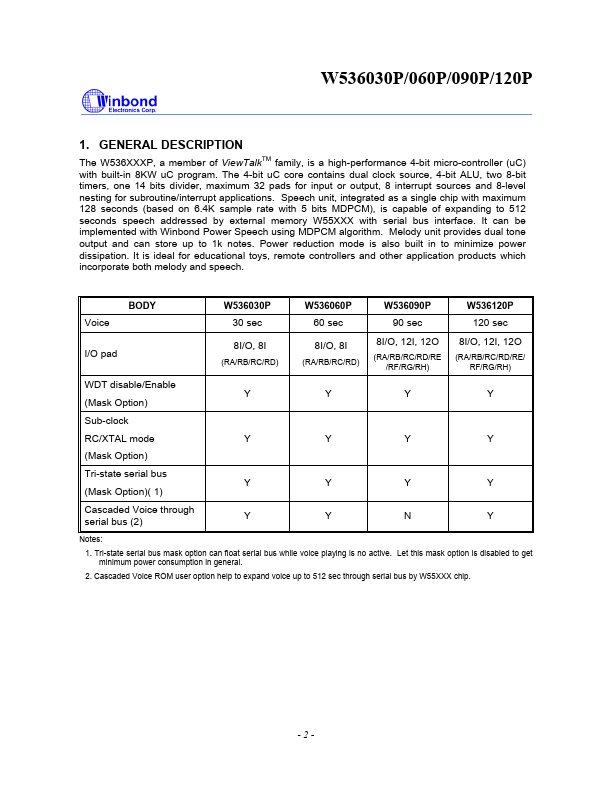

Description
The W536XXXP, a member of ViewTalkTM family, is a high-performance 4-bit micro-controller (uC) with built-in 8KW uC program.
Key Features
- Operating voltage: 2.4 volt ~ 5.5 volt
- Watch dog disabled/enabled by mask option
- Dual clock operating system
- Main clock with Ring/Crystal (400 KHz to 4 MHz) - Sub-clock with 32.768 KHz RC/Crystal by mask option
- Power-down mode - Hold mode (except for 32KHz oscillator) - Stop mode (including 32KHz oscillator and release by RD or RC port)
- One built-in 14-bit clock frequency divider circuit
- Built-in 18/14-bit watchdog timer for system reset
- Powerful instruction sets
- 8-level subroutine (including interrupt) nesting Publication Release Date: May 21, 2003
- 3- Revision A4 W536030P/060P/090P/120P
