W536060T - (W536xx0T) VOICE/MELODY/LCD CONTROLLER

This page provides the datasheet information for the W536060T, a member of the W536030T (W536xx0T) VOICE/MELODY/LCD CONTROLLER family.

Description

2

Features

  • 3 BLOCK.

📥 Download Datasheet

Datasheet preview – W536060T

Datasheet Details

Part number W536060T
Manufacturer Winbond
File Size 668.04 KB
Description (W536xx0T) VOICE/MELODY/LCD CONTROLLER
Datasheet download datasheet W536060T Datasheet
Additional preview pages of the W536060T datasheet.

📁 Similar Datasheet

  • W530-02 - Peak-reducing EMI Solution (Cypress Semiconductor)
  • W5300 - High-Performance Internet Connectivity Solution (WIZnet)
  • W532 - Peak Reducing EMI Solution (Cypress Semiconductor)
  • W5334MK200 - Rectifier Diode (IXYS)
  • W5334MK220 - Rectifier Diode (IXYS)
  • W538A801 - 8-Ch Speech/Melody/LCD Controller (Nuvoton)
  • W538A802 - 8-Ch Speech/Melody/LCD Controller (Nuvoton)
  • W538A804 - 8-Ch Speech/Melody/LCD Controller (Nuvoton)
  • W538A806 - 8-Ch Speech/Melody/LCD Controller (Nuvoton)
  • W538A808 - 8-Ch Speech/Melody/LCD Controller (Nuvoton)
Other Datasheets by Winbond
  • W536060A - (W536xx0A) VOICE/ MELODY / LCD CONTROLLER
  • W536060K - (W536xx0K) VOICE/MELODY/LCD CONTROLLER
  • W536060P - (W536xx0P) VOICE & MELODY CONTROLLER
  • W536020K - (W536xx0K) VOICE/MELODY/LCD CONTROLLER
  • W536030A - (W536xx0A) VOICE/ MELODY / LCD CONTROLLER
  • W536030K - (W536xx0K) VOICE/MELODY/LCD CONTROLLER
  • W536030P - (W536xx0P) VOICE & MELODY CONTROLLER
  • W536030T - (W536xx0T) VOICE/MELODY/LCD CONTROLLER

Full PDF Text Transcription

Click to expand full text

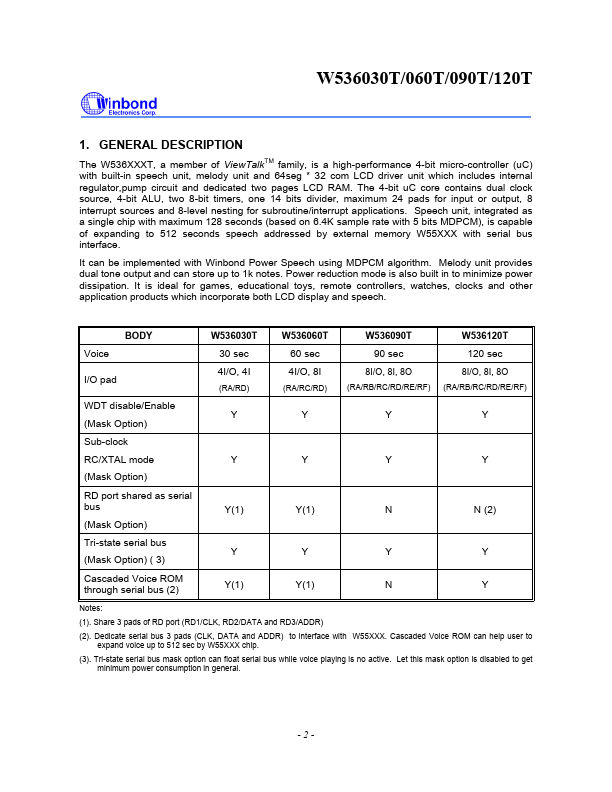

www.DataSheet4U.com W536030T/060T/090T/120T VOICE/MELODY/LCD CONTROLLER (ViewTalk TM Series) Table of Contents1. 2. 3. 4. 5. GENERAL DESCRIPTION ......................................................................................................... 2 FEATURES ................................................................................................................................. 3 BLOCK DIAGRAM ...................................................................................................................... 5 PAD DESCRIPTION ................................................................................................................... 6 ELECTRICAL CHARACTERISTICS........................................................................................... 9 5.1 5.2 5.3 6.
