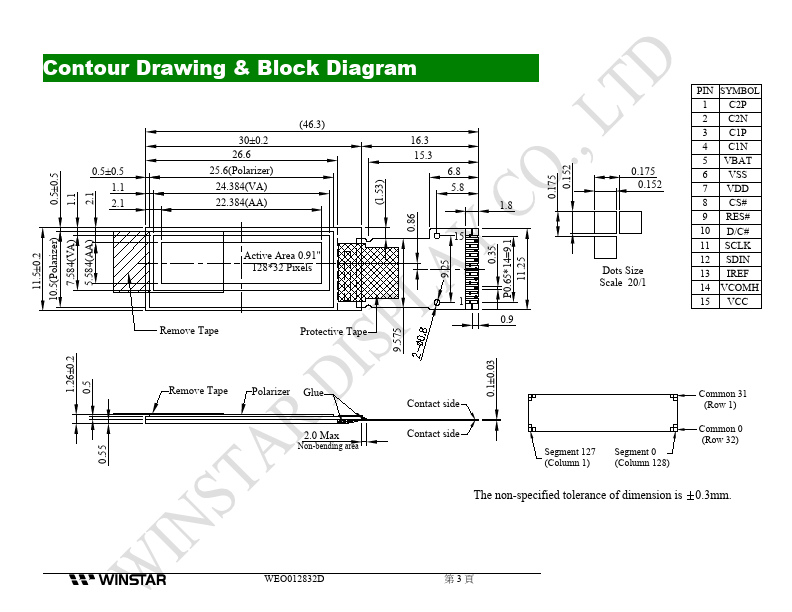

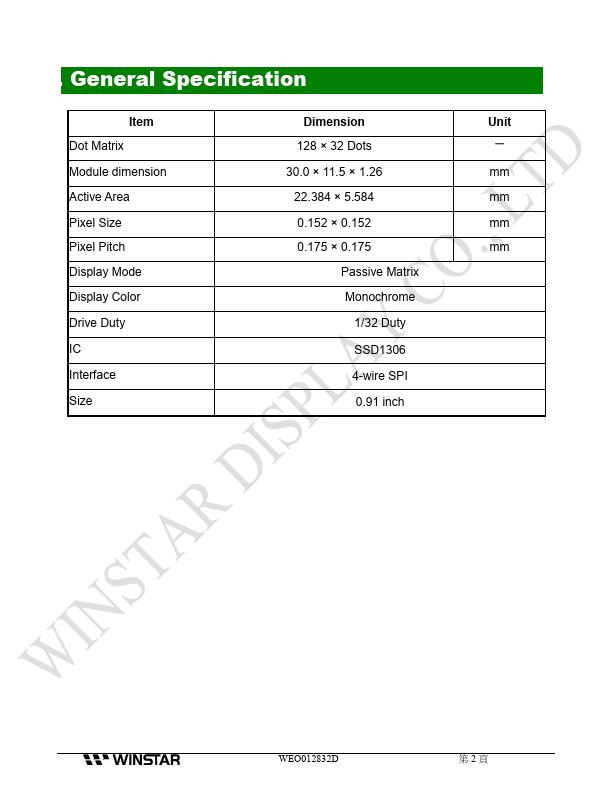

ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Min Max Unit Supply Voltage for Logic VDD 0 4.0 V Supply Voltage for Display VCC 0 16.0 V Operating Temperature TOP -40 +80 °C Storage Temperature TSTG -40 +85 °C

ELECTRICAL CHARACTERISTICS

DC

ELECTRICAL CHARACTERISTICS

Item Symbol Condition Min Typ Max Unit Supply Voltage for Logic Supply Voltage for Display (Supplied Externally) Charge Pump Regulator Supply Voltage Charge Pump Output Voltage for Display (Generated by Internal DC/DC) Input High Volt. VDD VCC VBAT Charge Pump VCC VIH － 2.8 3.0 3.3 V － 7 7.25 8 V － 3.0 － 4.2 V － 7.0 7.5 － V － 0.8×VDD － VDD V Input Low Volt. VIL － 0 － 0.2×VDD V Output High Volt. VOH － 0.9×VDD － VDD V Output Low Volt. Operating Current for VCC (VCC Supplied Externally) Display 50% Pixel on (VCC Generated by Internal DC/DC) VOL ICC IBAT － 0 VCC =7.25V － － － － 0.1×VDD V 7 11 mA 15 25 mA WEO012832D 第5頁 WEO012832D 第6頁
