WEO012832F
WEO012832F is OLED manufactured by WINSTAR Display.

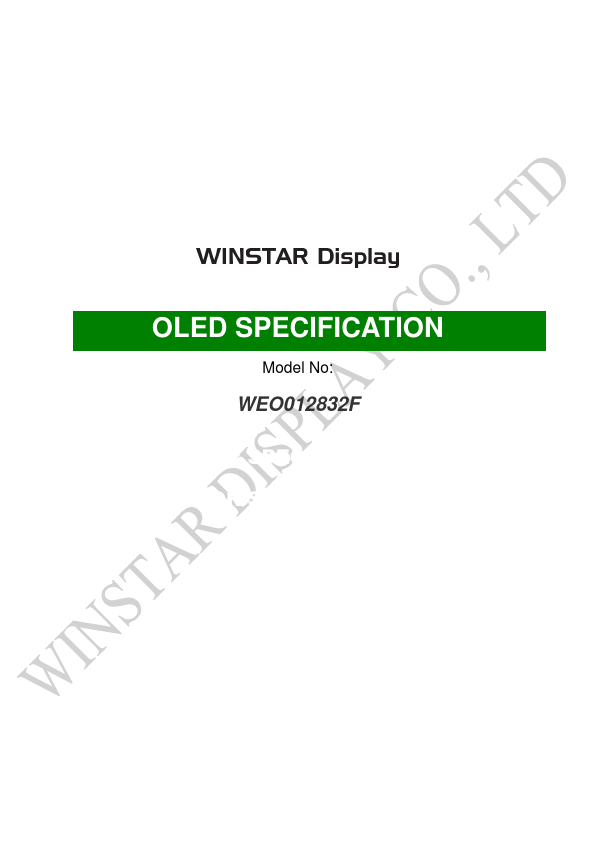

OLED SPECIFICATION
Model No:
- APPROVAL FOR SPECIFICATIONS ONLY
- APPROVAL FOR SPECIFICATIONS AND
SAMPLE (
)

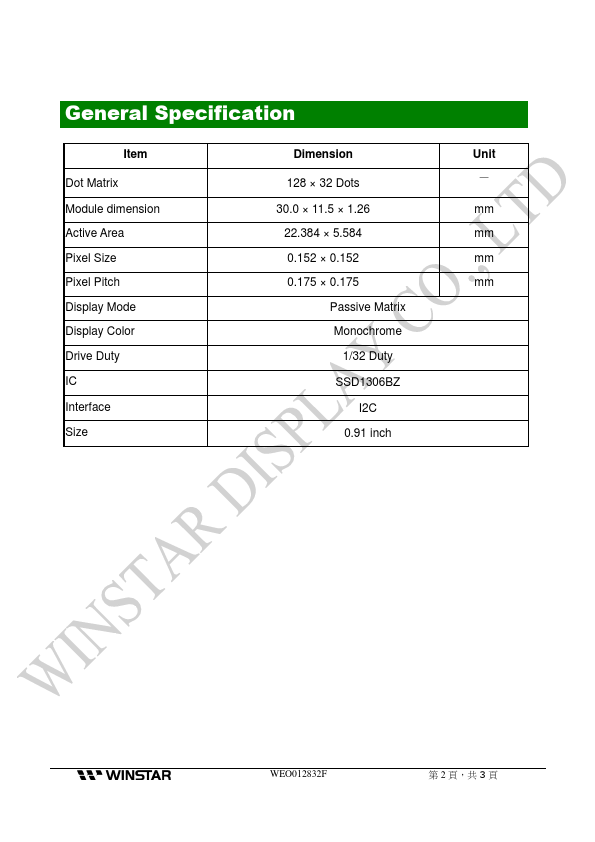

General Specification
Item
Dot Matrix Module dimension Active Area Pixel Size Pixel Pitch Display Mode Display Color Drive Duty IC Interface Size
Dimension
Unit
128 × 32 Dots
－
30.0 × 11.5 × 1.26 mm
22.384 × 5.584 mm
0.152 × 0.152 mm
0.175 × 0.175 mm
Passive Matrix Monochrome
1/32 Duty
SSD1306BZ
I2C
0.91 inch
第 2 頁，共 3 頁
11.5±0.2 10.5(Polarizer)
7.584(VA) 5.584(AA)

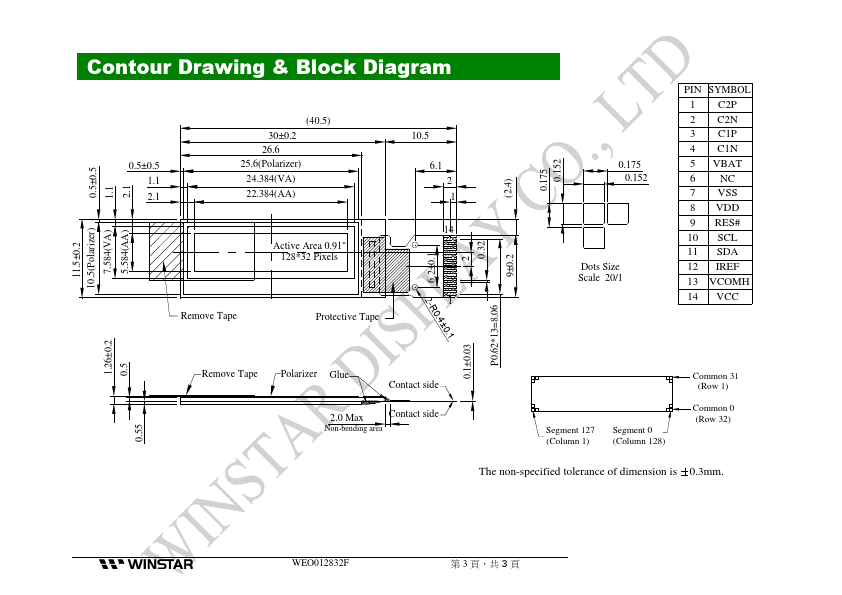

Contour Drawing & Block Diagram
0.5±0.5 1.1 2.1
0.5±0.5 1.1 2.1
(40.5) 30±0.2 26.6 25.6(Polarizer) 24.384(VA) 22.384(AA)
Active Area 0.91" 128- 32...
