Datasheet Summary

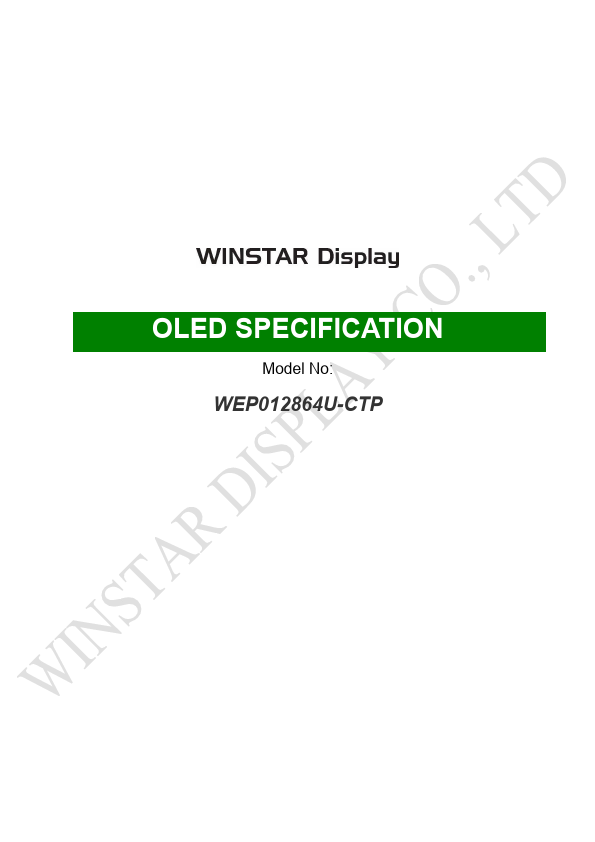

OLED SPECIFICATION
Model No:
- APPRO

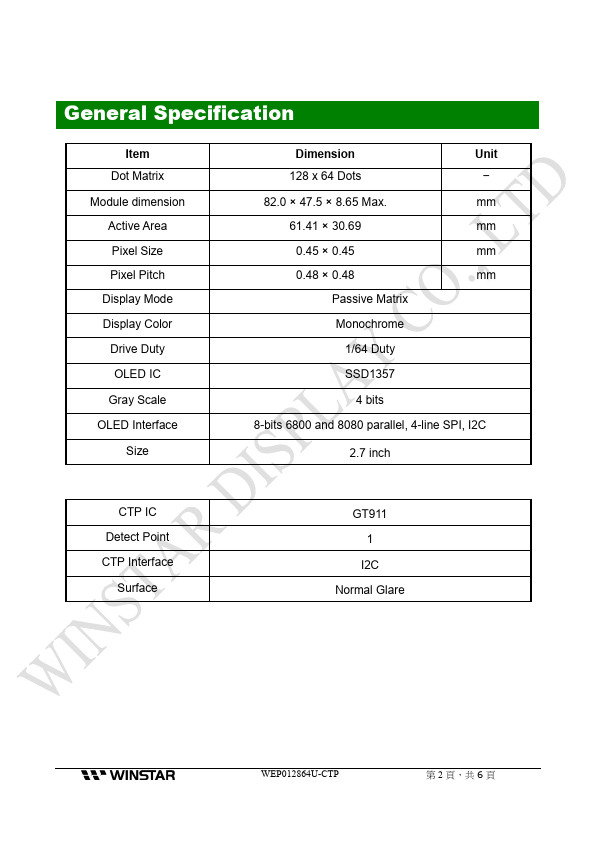

General Specification
Item Dot Matrix Module dimension Active Area Pixel Size Pixel Pitch Display Mode Display Color Drive Duty OLED IC Gray Scale OLED Interface
Size
Dimension
Unit
128 x 64 Dots
̶
82.0 × 47.5 × 8.65 Max. mm
61.41 × 30.69 mm
0.45 × 0.45 mm
0.48 × 0.48 mm
Passive Matrix
Monochrome
1/64 Duty
SSD1357
4 bits
8-bits 6800 and 8080 parallel, 4-line SPI, I2C
2.7 inch
CTP IC Detect Point CTP Interface
Surface
GT911 1 I2C
Normal Glare
第 2 頁，共 6 頁
44.16±0.1(CG)

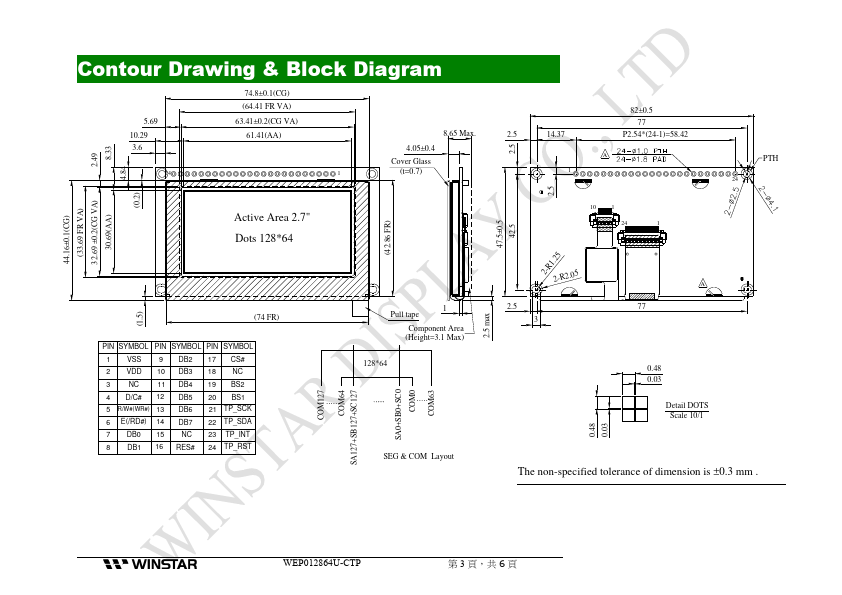

Contour Drawing & Block Diagram
5.69 10.29...
