Datasheet Summary
OLED SPECIFICATION
Model No:
WEP012864U ICATIONS AND
General Specification

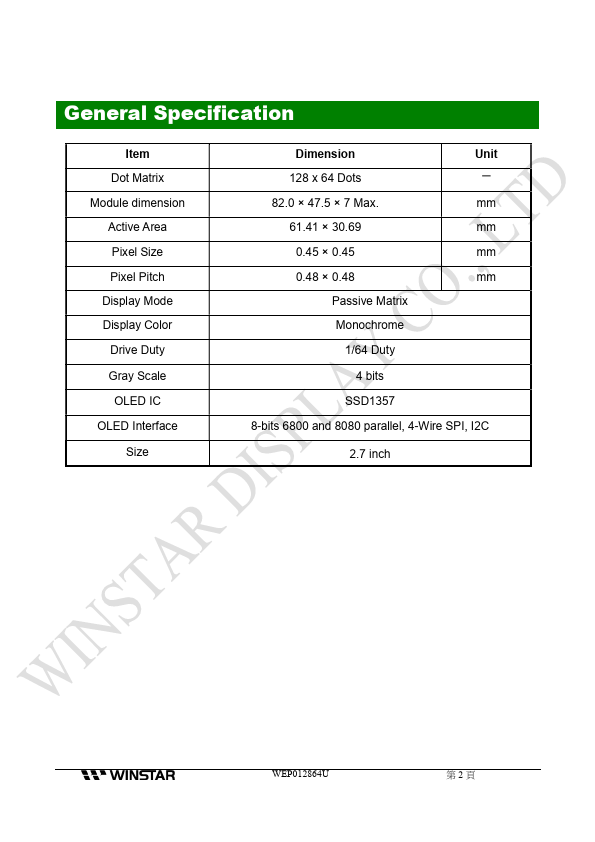

Item Dot Matrix Module dimension Active Area Pixel Size Pixel Pitch Display Mode Display Color Drive Duty Gray Scale OLED IC OLED Interface
Size
Dimension
Unit
128 x 64 Dots
－
82.0 × 47.5 × 7 Max. mm
61.41 × 30.69 mm
0.45 × 0.45 mm
0.48 × 0.48 mm
Passive Matrix
Monochrome
1/64 Duty 4 bits
SSD1357
8-bits 6800 and 8080 parallel, 4-Wire SPI, I2C
2.7 inch
第2頁
4.64 6.83 8.33
42.86(Bezel) 33.69(Bezel VA)
30.69(AA)

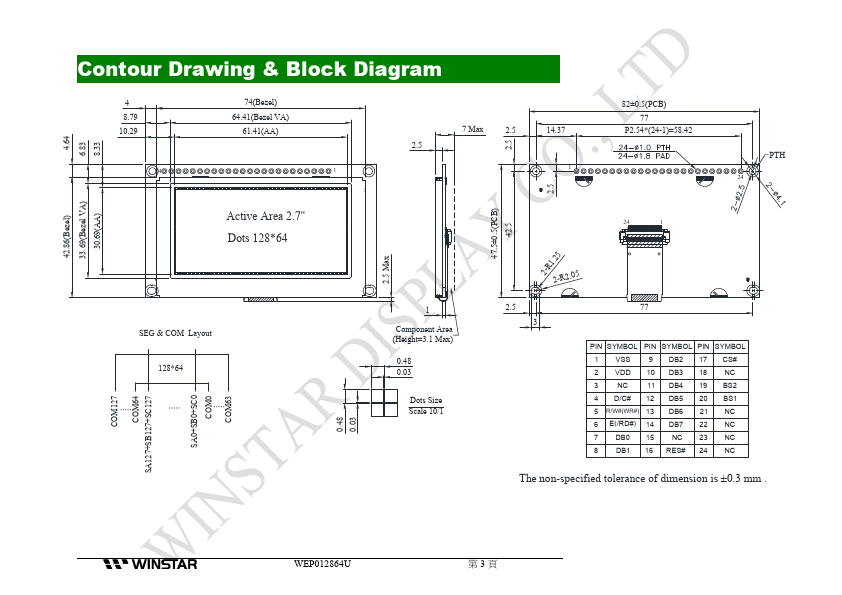

Contour Drawing & Block Diagram
4 8.79 10.29
74(Bezel) 64.41(Bezel VA)
61.41(AA)
7 Max
82±0.5(PCB)...
