Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

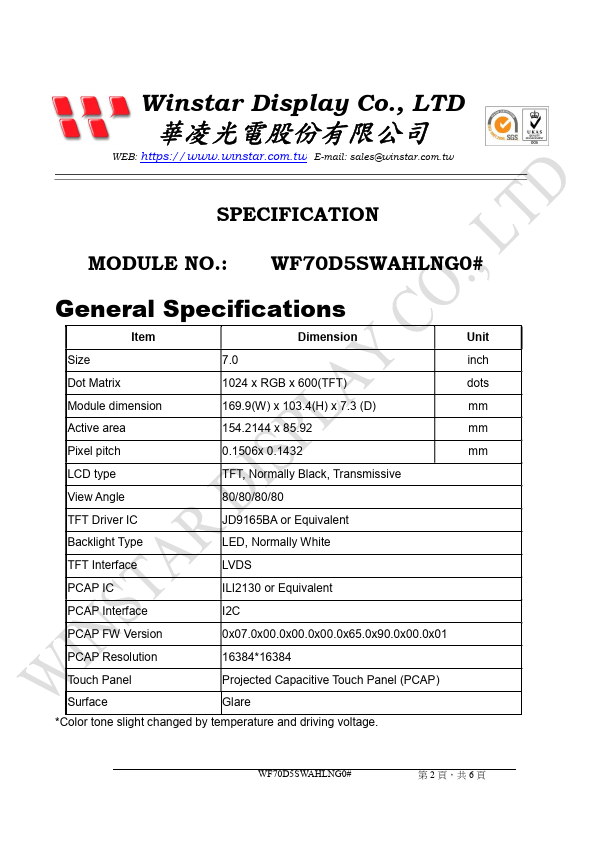

SPECIFICATION
MODULE NO.: WF70D5SWAHLNG0#
General Specifications
Item
Dimension
Unit
Size
7.0 inch
Dot Matrix
1024 x RGB x 600(TFT) dots
Module dimension
169.9(W) x 103.4(H) x 7.3 (D) mm
Active area
154.2144 x 85.92 mm
Pixel pitch
0.1506x 0.1432 mm
LCD type
TFT, Normally Black, Transmissive
View Angle
80/80/80/80
TFT Driver IC
JD9165BA or Equivalent
Backlight Type
LED, Normally White
TFT Interface
LVDS
PCAP...
