Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

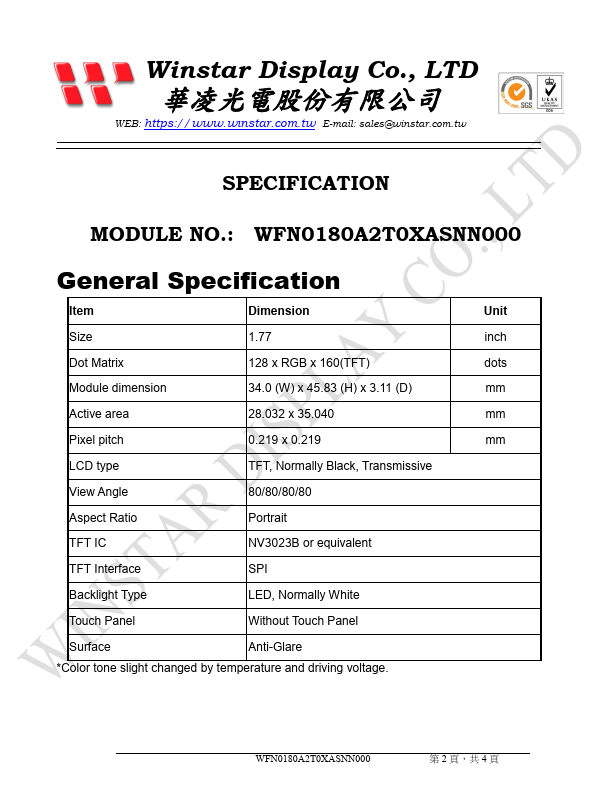

SPECIFICATION
MODULE NO.: WFN0180A2T0XASNN000
General Specification
Item
Dimension
Unit
Size
1.77 inch
Dot Matrix
128 x RGB x 160(TFT) dots
Module dimension
34.0 (W) x 45.83 (H) x 3.11 (D) mm
Active area
28.032 x 35.040 mm
Pixel pitch
0.219 x 0.219 mm
LCD type
TFT, Normally Black, Transmissive
View Angle
80/80/80/80
Aspect Ratio
Portrait
TFT IC
NV3023B or equivalent
TFT Interface
Backlight Type
LED, Normally...
