WG160128C Description

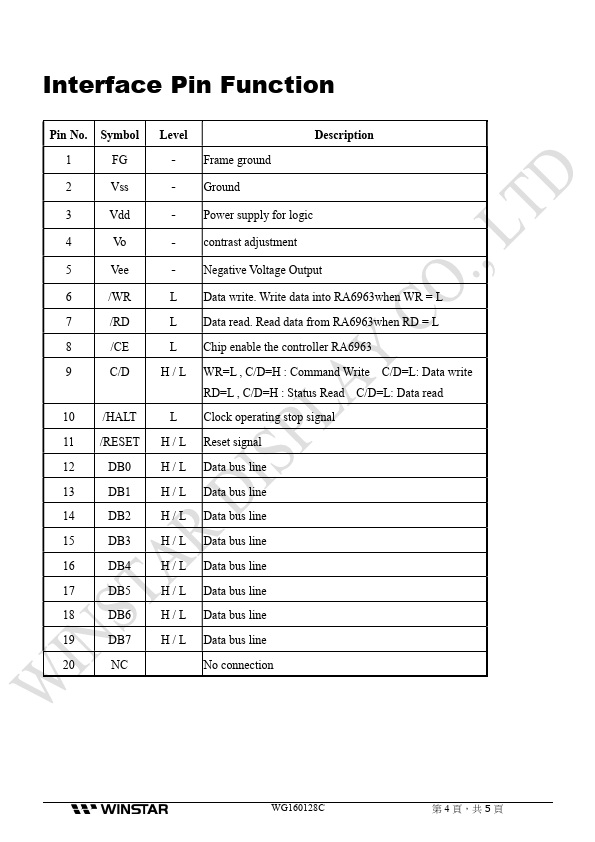

2 Vss － Ground 3 Vdd － Power supply for logic 4 Vo － contrast adjustment 5 Vee － Negative Voltage Output 6 /WR L Data write. Write data into RA6963when WR = L 7 /RD L Data read. Read data from RA6963when RD = L 8 /CE L Chip enable the controller RA6963 9 C/D H / L WR=L , C/D=H.
