Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

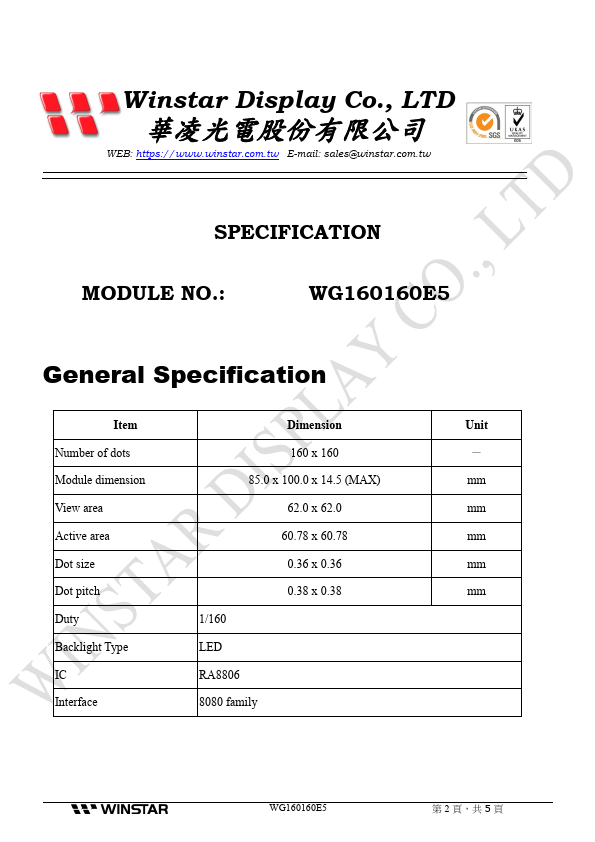

SPECIFICATION
MODULE NO.:
General Specification
Item
Dimension
Unit
Number of dots
160 x 160
－
Module dimension
85.0 x 100.0 x 14.5 (MAX) mm
View area
62.0 x 62.0 mm
Active area
60.78 x 60.78 mm
Dot size
0.36 x 0.36 mm
Dot pitch
0.38 x 0.38 mm
Duty
1/160
Backlight Type
RA8806
Interface
8080 family
第 2 頁，共 5...
