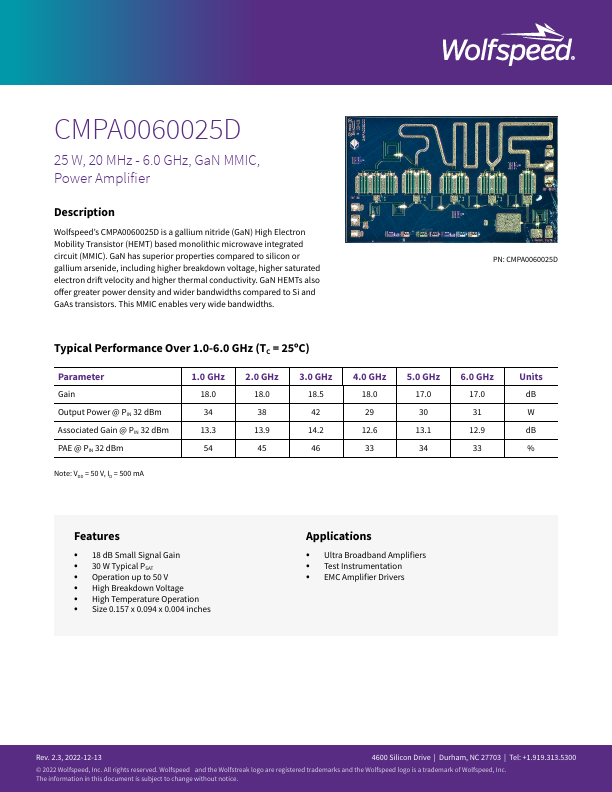

CMPA0060025D
CMPA0060025D is Power Amplifier manufactured by Wolfspeed.
25 W, 20 MHz
- 6.0 GHz, Ga N MMIC, Power Amplifier
Description
Wolfspeed’s CMPA0060025D is a gallium nitride (Ga N) High Electron Mobility Transistor (HEMT) based monolithic microwave integrated circuit (MMIC). Ga N has superior properties pared to silicon or gallium arsenide, including higher breakdown voltage, higher saturated electron drift velocity and higher thermal conductivity. Ga N HEMTs also offer greater power density and wider bandwidths pared to Si and Ga As transistors. This MMIC enables very wide bandwidths.
PN: CMPA0060025D
Typical Performance Over 1.0-6.0 GHz (TC = 25ºC)
Parameter Gain Output Power @ PIN 32 d Bm Associated Gain @ PIN 32 d Bm PAE @ PIN 32 d Bm
1.0 GHz 18.0 34 13.3 54
2.0 GHz 18.0 38 13.9 45
3.0 GHz 18.5 42 14.2 46
Note: VDD = 50 V, ID = 500 m A
4.0 GHz 18.0 29 12.6 33
5.0 GHz 17.0 30 13.1 34
6.0 GHz 17.0 31 12.9 33
Units d B W d B %
Features
- 18 d B Small Signal Gain
- 30 W Typical PSAT
- Operation up to 50 V
- High Breakdown Voltage
- High Temperature Operation
- Size 0.157 x 0.094 x 0.004 inches
Applications
- Ultra Broadband Amplifiers
- Test Instrumentation
- EMC Amplifier Drivers
Rev. 2.3, 2022-12-13
