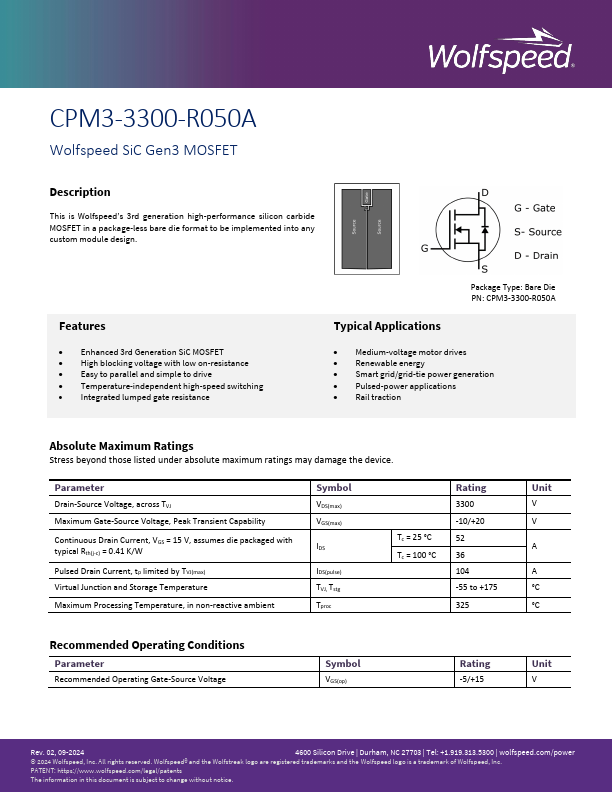

CPM3-3300-R050A
CPM3-3300-R050A is SiC Gen3 MOSFET manufactured by Wolfspeed.
Wolfspeed Si C Gen3 MOSFET
Description
This is Wolfspeed’s 3rd generation high-performance silicon carbide MOSFET in a package-less bare die format to be implemented into any custom module design.
Features
- Enhanced 3rd Generation Si C MOSFET
- High blocking voltage with low on-resistance
- Easy to parallel and simple to drive
- Temperature-independent high-speed switching
- Integrated lumped gate resistance
Package Type: Bare Die PN: CPM3-3300-R050A
Typical Applications
- Medium-voltage motor drives
- Renewable energy
- Smart grid/grid-tie power generation
- Pulsed-power applications
- Rail...
