HC32F002 - 32-bit Microcontroller

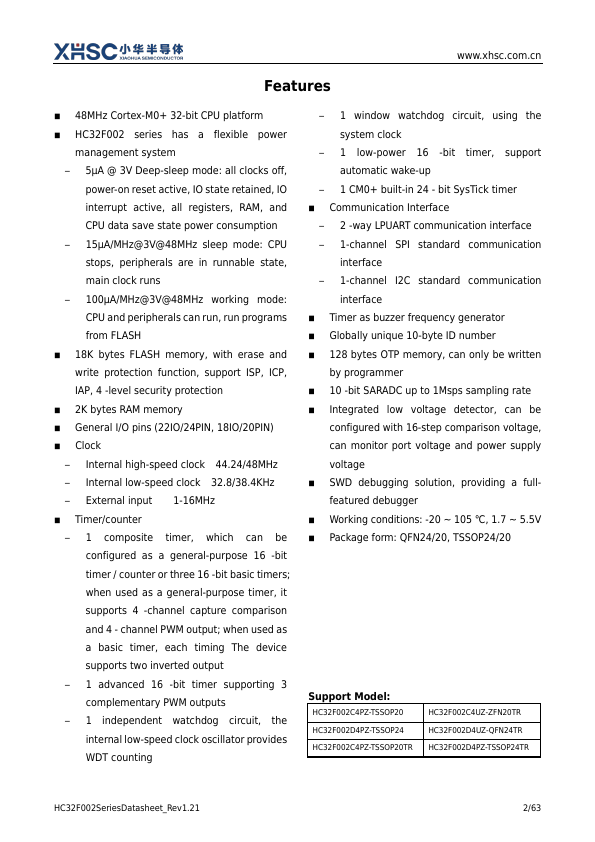

Features

  • ◾ 48MHz Cortex-M0+ 32-bit CPU platform ◾ HC32F002 series has a flexible power management system ‒ 5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retained, IO interrupt active, all registers, RAM, and CPU data save state power consumption ‒ 15μA/MHz@3V@48MHz sleep mode: CPU stops, peripherals are in runnable state, main clock runs ‒ 100μA/MHz@3V@48MHz working mode: CPU and peripherals can run, run programs from FLASH ◾ 18K bytes FLASH memory, with erase and write prote.

📥 Download Datasheet

Datasheet preview – HC32F002

Datasheet Details

Part number HC32F002
Manufacturer XHSC
File Size 738.34 KB
Description 32-bit Microcontroller
Datasheet download datasheet HC32F002 Datasheet
Additional preview pages of the HC32F002 datasheet.

📁 Similar Datasheet

  • HC320 - Controller (ETC)
  • HC32L110 - 32-bit microcontroller (HDSC)
  • HC32L190 - 32-bit microcontroller (HDSC)
  • HC32L196 - 32-bit microcontroller (HDSC)
  • HC3-1R0-R - High current power inductors (EATON)
  • HC3-2R2-R - High current power inductors (EATON)
  • HC3-3R3-R - High current power inductors (EATON)
  • HC3-4R7-R - High current power inductors (EATON)
  • HC3-5502B-5 - EIA/ITU PABX SLIC (Intersil Corporation)
  • HC3-5502B1-5 - SLIC Subscriber Line Interface (Intersil Corporation)
Other Datasheets by XHSC

Full PDF Text Transcription

Click to expand full text

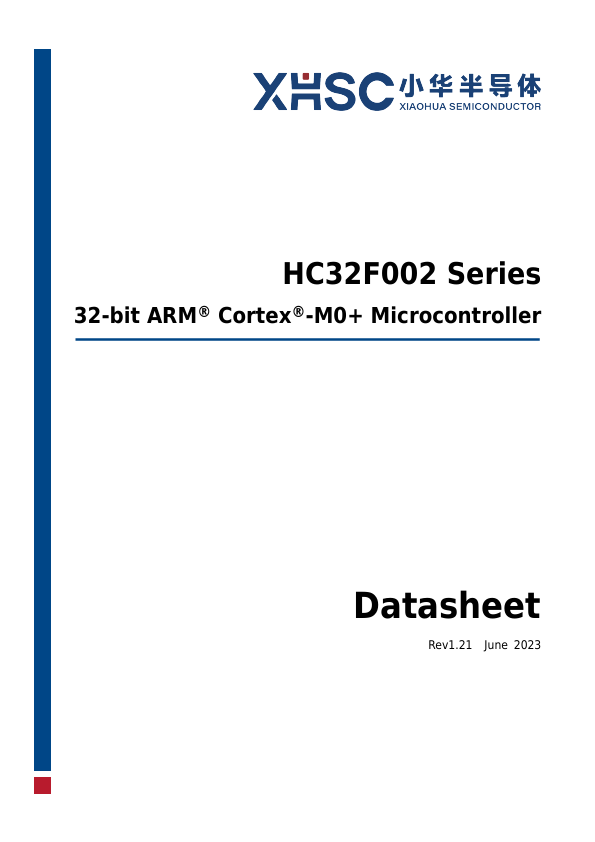

HC32F002 Series 32-bit ARM® Cortex®-M0+ Microcontroller Datasheet Rev1.21 June 2023 www.xhsc.com.cn Features ◾ 48MHz Cortex-M0+ 32-bit CPU platform ◾ HC32F002 series has a flexible power management system ‒ 5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retained, IO interrupt active, all registers, RAM, and CPU data save state power consumption ‒ 15μA/MHz@3V@48MHz sleep mode: CPU stops, peripherals are in runnable state, main clock runs ‒ 100μA/MHz@3V@48MHz working mode: CPU and peripherals can run, run programs from FLASH ◾ 18K bytes FLASH memory, with erase and write protection function, support ISP, ICP, IAP, 4 -level security protection ◾ 2K bytes RAM memory ◾ General I/O pins (22IO/24PIN, 18IO/20PIN) ◾ Clock ‒ Internal high-speed clock 44.
