HC32F334 - 32-bit Microcontroller

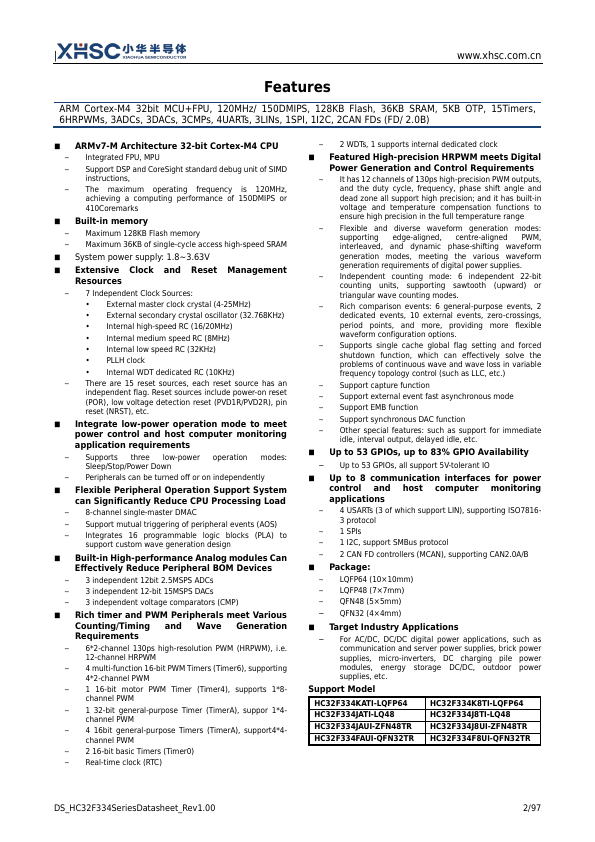

Features

  • ARM Cortex-M4 32bit MCU+FPU, 120MHz/ 150DMIPS, 128KB Flash, 36KB SRAM, 5KB OTP, 15Timers, 6HRPWMs, 3ADCs, 3DACs, 3CMPs, 4UARTs, 3LINs, 1SPI, 1I2C, 2CAN FDs (FD/ 2.0B) ◾ ARMv7-M Architecture 32-bit Cortex-M4 CPU ‒ Integrated FPU, MPU ‒ Support DSP and CoreSight standard debug unit of SIMD instructions, ‒ The maximum operating frequency is 120MHz, achieving a computing performance of 150DMIPS or 410Coremarks ◾ Built-in memory ‒ Maximum 128KB Flash memory ‒ Maximum 36KB of single-cycle access high.

📥 Download Datasheet

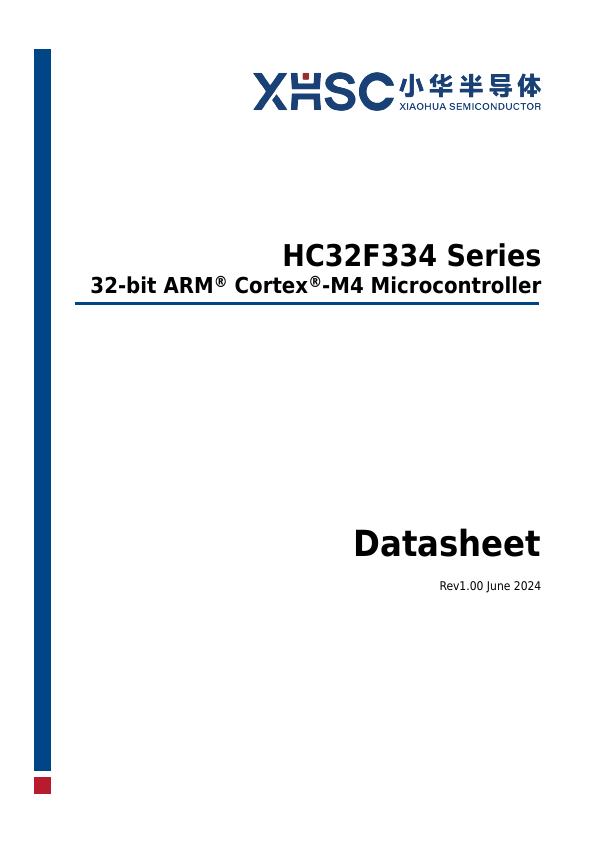

Datasheet preview – HC32F334

Datasheet Details

Part number HC32F334
Manufacturer XHSC
File Size 1.10 MB
Description 32-bit Microcontroller
Datasheet download datasheet HC32F334 Datasheet
Additional preview pages of the HC32F334 datasheet.

📁 Similar Datasheet

  • HC320 - Controller (ETC)
  • HC32L110 - 32-bit microcontroller (HDSC)
  • HC32L190 - 32-bit microcontroller (HDSC)
  • HC32L196 - 32-bit microcontroller (HDSC)
  • HC3-1R0-R - High current power inductors (EATON)
  • HC3-2R2-R - High current power inductors (EATON)
  • HC3-3R3-R - High current power inductors (EATON)
  • HC3-4R7-R - High current power inductors (EATON)
  • HC3-5502B-5 - EIA/ITU PABX SLIC (Intersil Corporation)
  • HC3-5502B1-5 - SLIC Subscriber Line Interface (Intersil Corporation)
Other Datasheets by XHSC

Full PDF Text Transcription

Click to expand full text
HC32F334 Series 32-bit ARM® Cortex®-M4 Microcontroller Datasheet Rev1.00 June 2024 | www.xhsc.com.cn Features ARM Cortex-M4 32bit MCU+FPU, 120MHz/ 150DMIPS, 128KB Flash, 36KB SRAM, 5KB OTP, 15Timers, 6HRPWMs, 3ADCs, 3DACs, 3CMPs, 4UARTs, 3LINs, 1SPI, 1I2C, 2CAN FDs (FD/ 2.0B) ◾ ARMv7-M Architecture 32-bit Cortex-M4 CPU ‒ Integrated FPU, MPU ‒ Support DSP and CoreSight standard debug unit of SIMD instructions, ‒ The maximum operating frequency is 120MHz, achieving a computing performance of 150DMIPS or 410Coremarks ◾ Built-in memory ‒ Maximum 128KB Flash memory ‒ Maximum 36KB of single-cycle access high-speed SRAM ◾ System power supply: 1.8~3.
