HC32L136 Overview

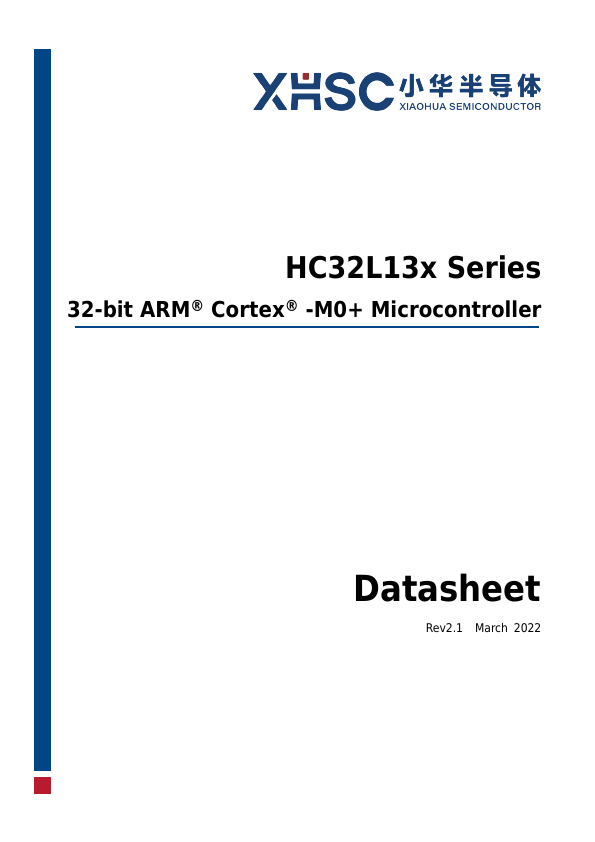

HC32L13x Series 32-bit ARM® Cortex® -M0+ Microcontroller Datasheet Rev2.1 March 2022 .xhsc..cn.

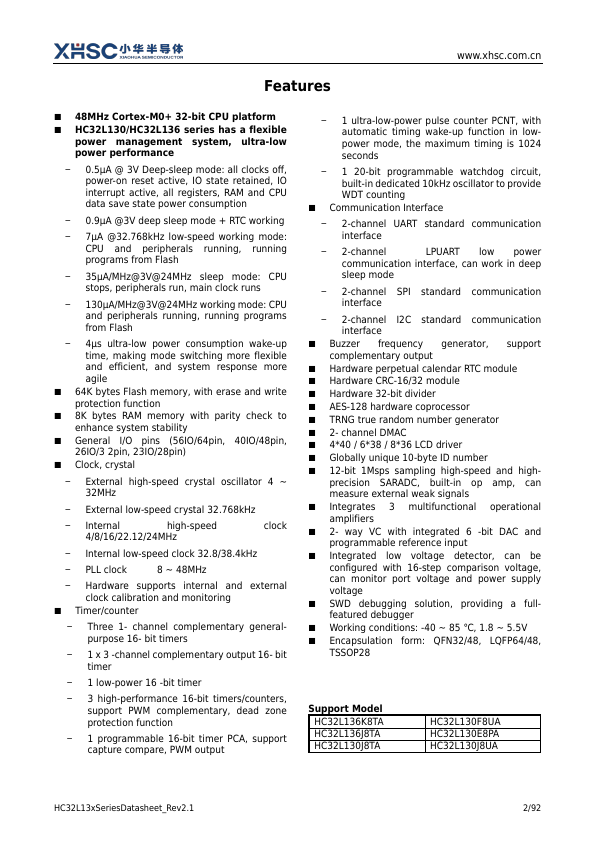

HC32L136 Key Features
- 48MHz Cortex-M0+ 32-bit CPU platform
- HC32L130/HC32L136 series has a flexible power management system, ultra-low power performance
- 0.5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retained, IO interrupt active, all registers
- 0.9μA @3V deep sleep mode + RTC working
- 7μA @32.768kHz low-speed working mode: CPU and peripherals running, running programs from Flash
- 35μA/MHz@3V@24MHz sleep mode: CPU stops, peripherals run, main clock runs
- 130μA/MHz@3V@24MHz working mode: CPU and peripherals running, running programs from Flash
- 4μs ultra-low power consumption wake-up time, making mode switching more flexible and efficient, and system response mor
- 64K bytes Flash memory, with erase and write protection function
- 8K bytes RAM memory with parity check to enhance system stability
