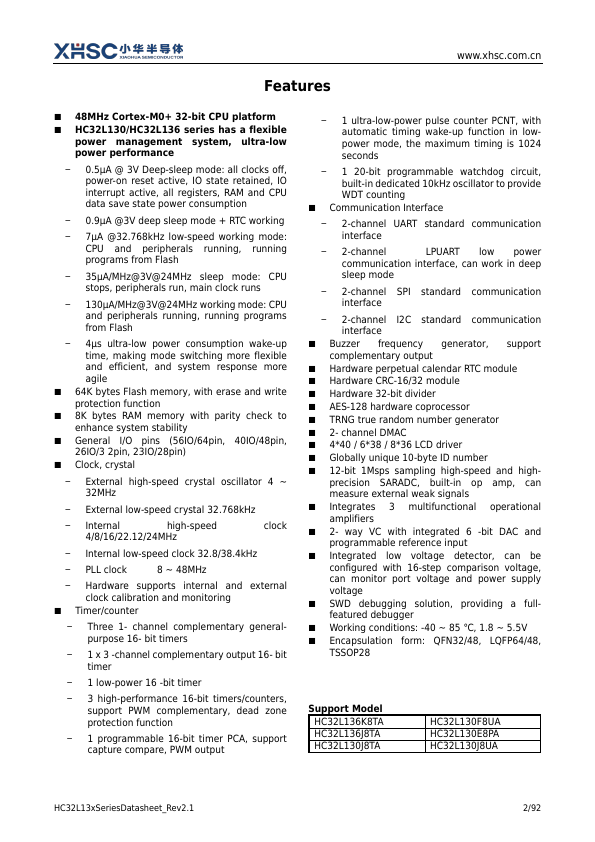

HC32L13x Series 32-bit ARM® Cortex® -M0+ Microcontroller Rev2.1 March 2022 .xhsc..cn Features - 48MHz Cortex-M0+ 32-bit CPU platform - HC32L130/HC32L136 series has a flexible power management system, ultra-low power performance - 0.5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retained, IO interrupt active, all registers, RAM and CPU data save state power consumption - 0.9μA @3V deep sleep mode + RTC working - 7μA @32.768k Hz low-speed working mode: CPU and peripherals running, running programs from Flash - 35μA/MHz@3V@24MHz sleep mode: CPU stops, peripherals run, main clock runs - 130μA/MHz@3V@24MHz working mode: CPU and peripherals running, running programs from Flash - 4μs ultra-low power consumption wake-up time, making mode switching more flexible and efficient, and system response more agile - 64K bytes Flash memory, with erase and write protection function - 8K bytes RAM memory with parity check to enhance system stability - General I/O pins (56IO/64pin, 40IO/48pin, 26IO/3 2pin, 23IO/28pin) - Clock, crystal - External high-speed crystal oscillator 4 ~ 32MHz - External low-speed crystal 32.768k Hz - Internal high-speed 4/8/16/22.12/24MHz clock - Internal low-speed clock 32.8/38.4k Hz - PLL clock 8 ~ 48MHz - Hardware supports internal and external clock calibration and monitoring - Timer/counter - Three 1- channel plementary generalpurpose 16- bit timers - 1 x 3 -channel plementary output 16- bit timer - 1 low-power 16 -bit timer - 3 high-performance 16-bit timers/counters, support PWM plementary, dead zone protection...
