BX66R002 Datasheet | XINQUN

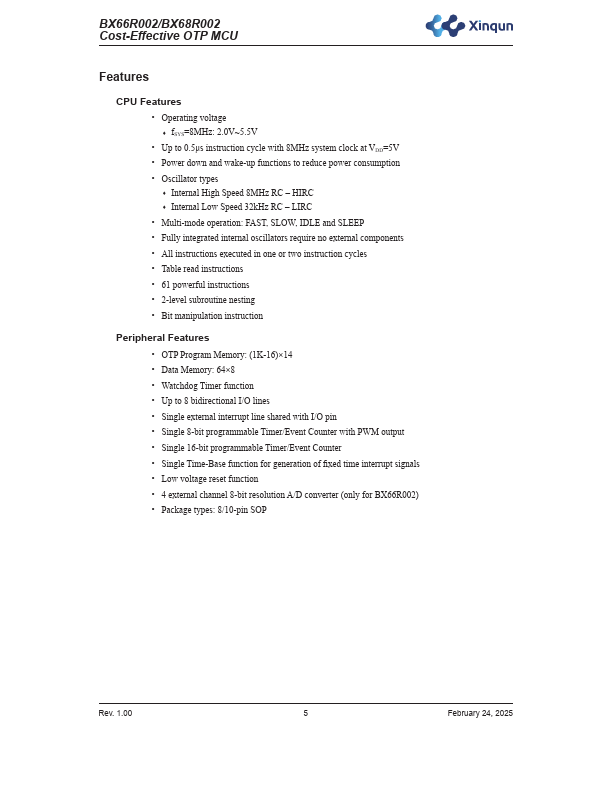

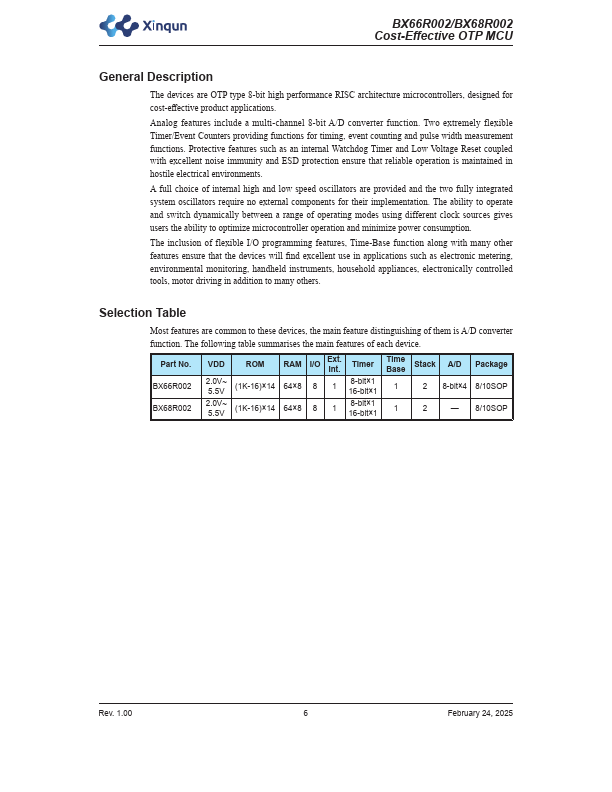

Features CPU Features - Operating voltage - f SYS=8MHz: 2.0V~5.5V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types - Internal High Speed 8MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in one or two instruction cycles - Table read instructions - 61 powerful instructions - 2-level subroutine nesting - Bit manipulation instruction Peripheral Features - OTP Program Memory: (1K-16)×14 - Data Memory: 64×8 - Watchdog Timer function - Up to 8 bidirectional I/O lines - Single external interrupt line shared with I/O pin - Single 8-bit programmable Timer/Event Counter with PWM output - Single 16-bit programmable Timer/Event Counter - Single Time-Base function for generation of fixed time interrupt signals - Low voltage reset function - 4 external channel 8-bit resolution A/D converter (only for BX66R002) - Package types: 8/10-pin SOP Rev. 1.00 February 24, 2025 BX66R002/BX68R002 Cost-Effective OTP MCU General Description The devices are OTP type 8-bit high performance RISC architecture microcontrollers, designed for cost-effective product applications. Analog features include a multi-channel 8-bit A/D converter function. Two extremely flexible Timer/Event Counters providing functions for timing, event counting and pulse width measurement functions. Protective features such as an internal Watchdog Timer and Low Voltage Reset coupled with excellent noise immunity and ESD protection ensure that reliable operation is maintained in hostile electrical environments. A full choice of internal high and low speed oscillators are provided and the two fully integrated system oscillators require no external ponents for their implementation. The ability to operate and switch dynamically between a range of operating modes using different...
