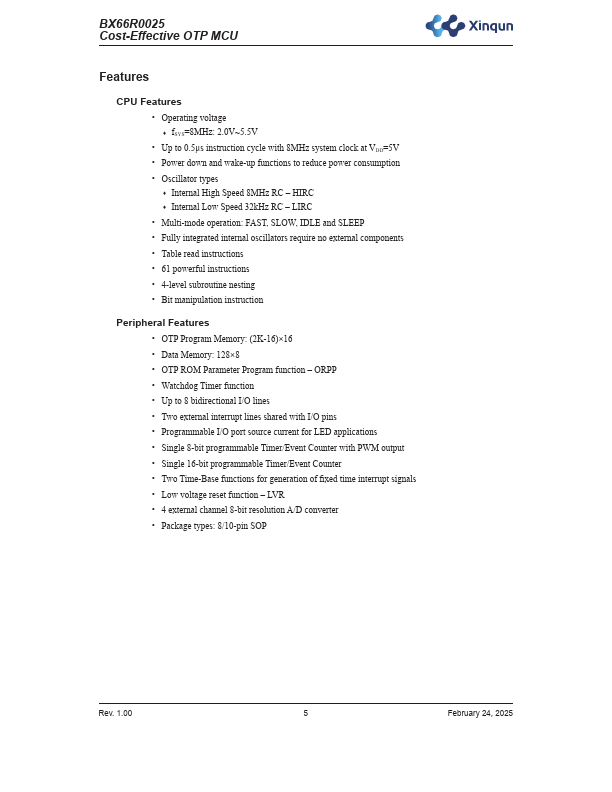

Features CPU Features - Operating voltage - f SYS=8MHz: 2.0V~5.5V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types - Internal High Speed 8MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - Table read instructions - 61 powerful instructions - 4-level subroutine nesting - Bit manipulation instruction Peripheral Features - OTP Program Memory: (2K-16)×16 - Data Memory: 128×8 - OTP ROM Parameter Program function - ORPP - Watchdog Timer function - Up to 8 bidirectional I/O lines - Two external interrupt lines shared with I/O pins - Programmable I/O port source current for LED applications - Single 8-bit programmable Timer/Event Counter with PWM output - Single 16-bit programmable Timer/Event Counter - Two Time-Base functions for generation of fixed time interrupt signals - Low voltage reset function - LVR - 4 external channel 8-bit resolution A/D converter - Package types: 8/10-pin SOP Rev. 1.00 February 24, 2025 BX66R0025 Cost-Effective OTP MCU General Description The device is OTP type 8-bit high performance RISC architecture microcontroller, designed for cost-effective product applications. For memory...
