XL1583 - 3A 380KHz 23V Buck DC to DC Converter

General Description

The XL1583 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation.

Key Features

  • XL1583 General.

📥 Download Datasheet

Datasheet Details

Part number XL1583
Manufacturer XLSEMI
File Size 212.59 KB
Description 3A 380KHz 23V Buck DC to DC Converter
Datasheet download datasheet XL1583 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL1509 150KHz fixed frequency PWM buck DC/DC converter UMW
XL1000 20.0-40.0 GHz GaAs MMIC Low Noise Amplifier Mimix Broadband
XL1000-BD Low Noise Amplifier MA-COM
XL1001 17.0-35.0 GHz GaAs MMIC Low Noise Amplifier Mimix Broadband
XL1002 20.0-36.0 GHz GaAs MMIC Low Noise Amplifier Mimix Broadband

Other Datasheets by XLSEMI

Part Number Description
XL1507 3A 150KHz 30V Buck DC to DC Converter
XL1507A 150KHz 60V 3A Buck DC to DC Converter
XL1509 2A 150KHz 40V Buck DC to DC Converter
XL1509Q 150KHz 45V 2A AEC-Q100 Buck DC to DC Converter
XL1513 2A 380KHz 18V Buck DC to DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

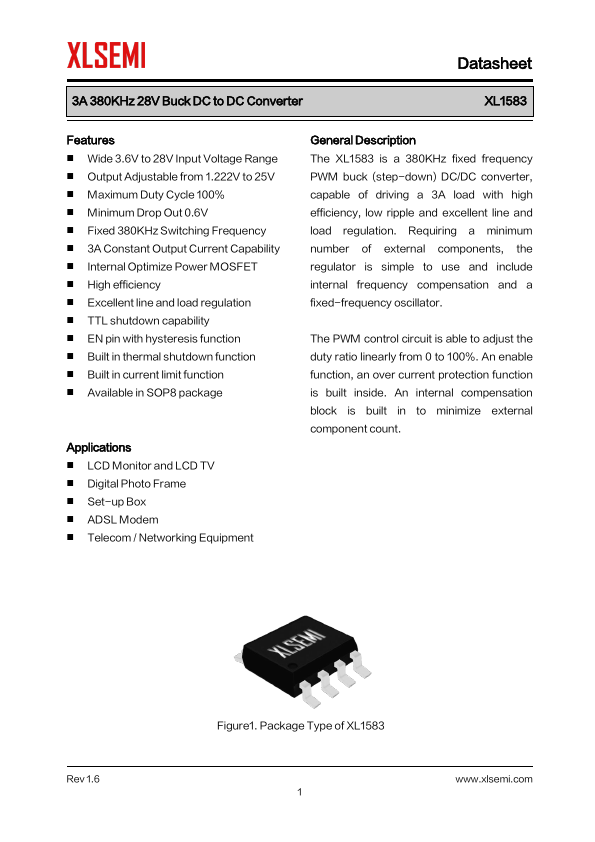

Datasheet 3A 380KHz 23V Buck DC to DC Converter Features „ „ „ „ XL1583 General Description The XL1583 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 380KHz to 80KHz. An internal compensation block is built in to minimize external component count. Wide 3.
