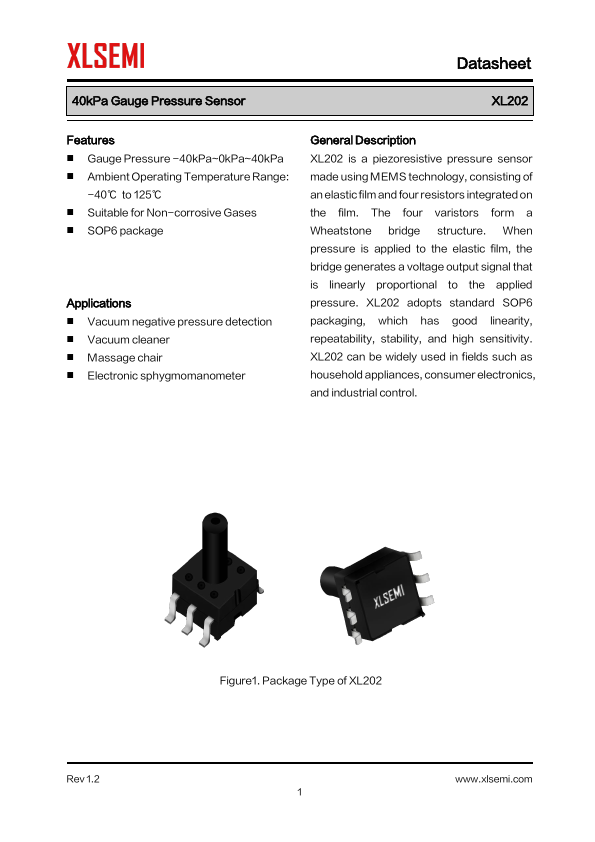

Datasheet Summary
40kPa Gauge Pressure Sensor
Features
- Gauge Pressure -40kPa~0kPa~40kPa
- Ambient Operating Temperature Range:
-40℃ to 125℃
- Suitable for Non-corrosive Gases
- SOP6 package
Applications
- Vacuum negative pressure detection
- Vacuum cleaner
- Massage chair
- Electronic sphygmomanometer

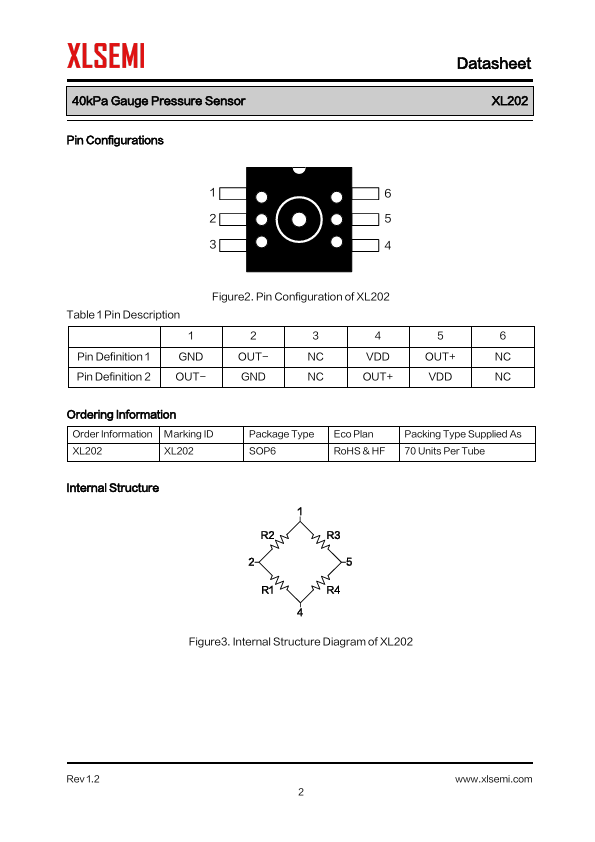

General Description XL202 is a piezoresistive pressure sensor made using MEMS technology, consisting of an elastic film and four resistors integrated on the film. The four varistors form a Wheatstone bridge structure. When pressure is applied to the elastic film, the bridge generates a voltage output signal that is linearly proportional to the applied pressure. XL202 adopts standard SOP6...
