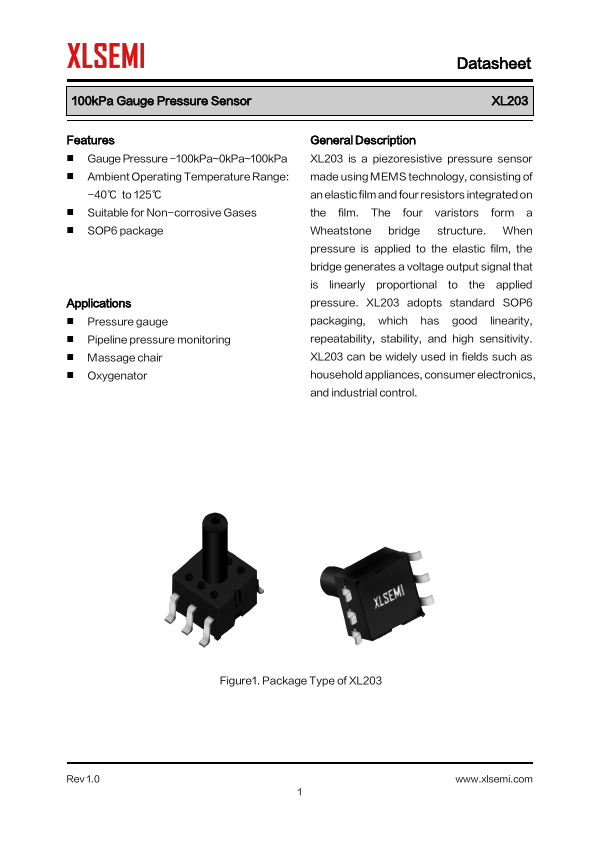

Datasheet Summary
100kPa Gauge Pressure Sensor
Features
- Gauge Pressure -100kPa~0kPa~100kPa
- Ambient Operating Temperature Range:
-40℃ to 125℃
- Suitable for Non-corrosive Gases
- SOP6 package
Applications
- Pressure gauge
- Pipeline pressure monitoring
- Massage chair
- Oxygenator
General Description XL203 is a piezoresistive pressure sensor made using MEMS technology, consisting of an elastic film and four resistors integrated on the film. The four varistors form a Wheatstone bridge structure. When pressure is applied to the elastic film, the bridge generates a voltage output signal that is linearly proportional to the applied pressure. XL203 adopts standard SOP6 packaging, which has...
