XL2050A - 35W 5A 60V High Voltage High Power Audio Power Amplifier

Datasheet Summary

Description

XL2050A is a mono Class AB audio power amplifier optimized for high voltage, high power and high efficiency.

XL2050A has low quiescent current and minimizing system power consumption.

XL2050A has excellent audio performance and achieved extremely low distortion levels even at 35W power levels.

Features

  • Operation Voltage：12V~60V.
  • Max. Output current capability up to 5A.
  • Max. Output power up to 35W.
  • Built in output over power protection.
  • Built in output short protection function.
  • Built in output overvoltage protection.
  • Built in current limit protection function.
  • Built in thermal shutdown function.
  • Low quiescent current：30mA.
  • Low Distortion：0.015%，1KHz，20W.
  • Open loop gain up to 90dB.
  • 94dB Ripple Rejection.
  • Available in TO220B-5L pa.

📥 Download Datasheet

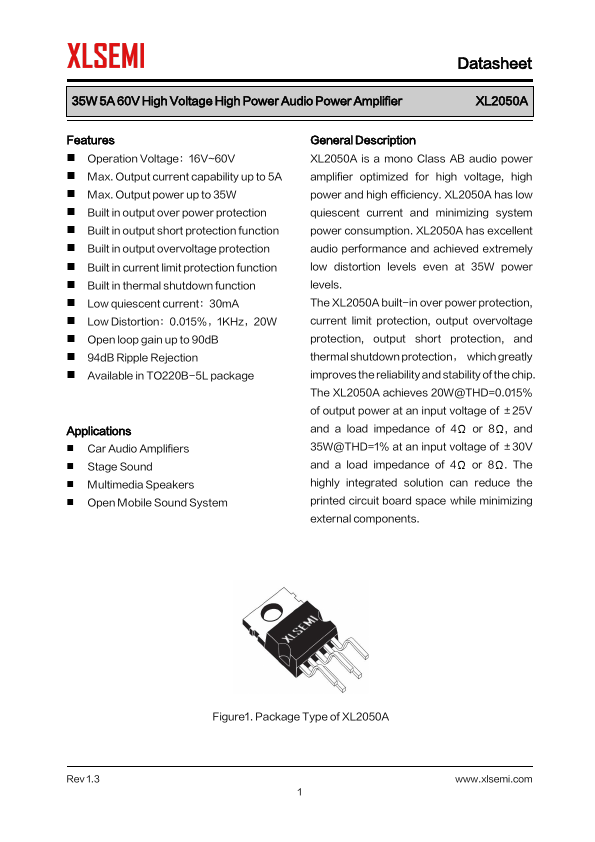

Datasheet preview – XL2050A
