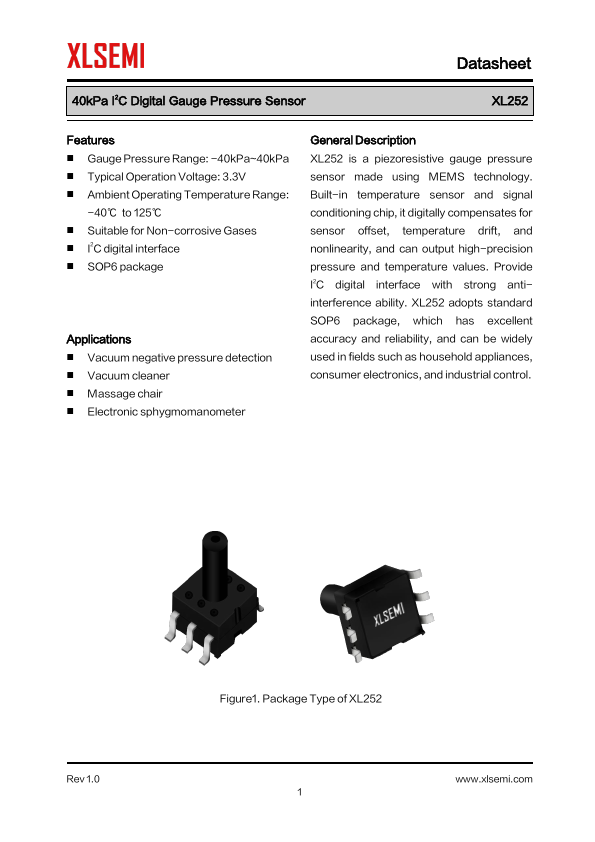

Datasheet Summary
40kPa I2C Digital Gauge Pressure Sensor
Features
- Gauge Pressure Range: -40kPa~40kPa
- Typical Operation Voltage: 3.3V
- Ambient Operating Temperature Range:
-40℃ to 125℃
- Suitable for Non-corrosive Gases
- I2C digital interface
- SOP6 package
Applications
- Vacuum negative pressure detection
- Vacuum cleaner
- Massage chair
- Electronic sphygmomanometer
General Description XL252 is a piezoresistive gauge pressure sensor made using MEMS technology. Built-in temperature sensor and signal conditioning chip, it digitally pensates for sensor offset, temperature drift, and nonlinearity, and can output high-precision pressure and temperature values. Provide I2C digital...
