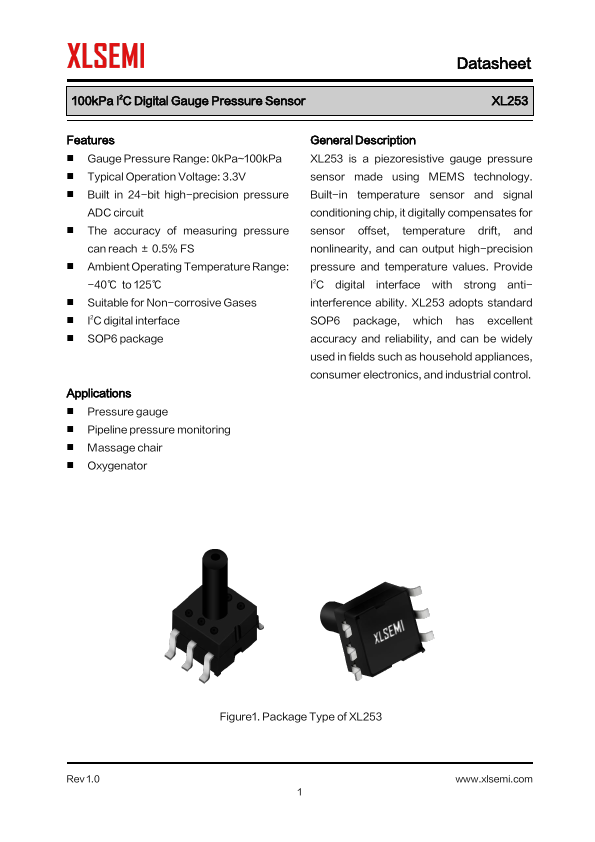

XL253
Overview
XL253 is a piezoresistive gauge pressure sensor made using MEMS technology. Built-in temperature sensor and signal conditioning chip, it digitally compensates for sensor offset, temperature drift, and nonlinearity, and can output high-precision pressure and temperature values.
- Gauge Pressure Range: 0kPa~100kPa
- Typical Operation Voltage: 3.3V
- Built in 24-bit high-precision pressure ADC circuit
- The accuracy of measuring pressure can reach ± 0.5% FS
- Ambient Operating Temperature Range: -40℃ to 125℃
- Suitable for Non-corrosive Gases
- I2C digital interface
- SOP6 package
