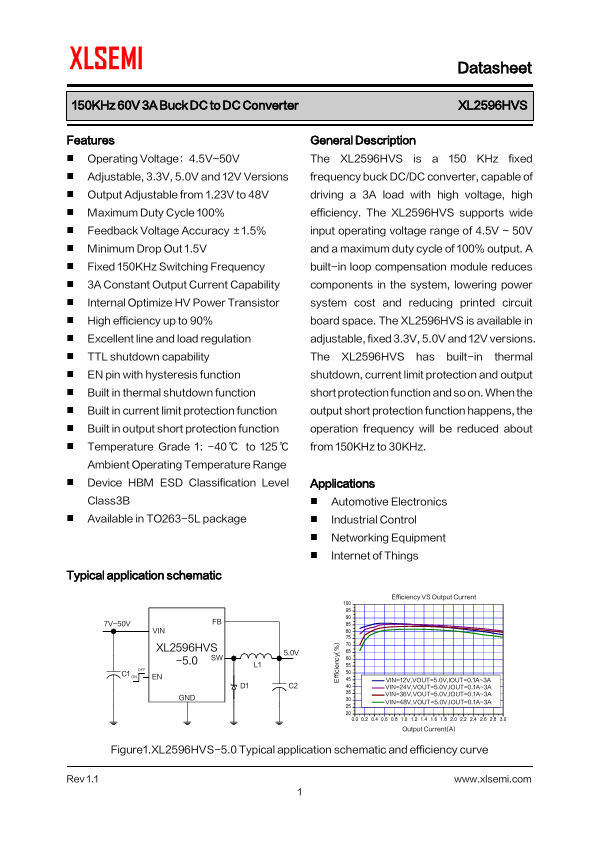

XL2596HVS
Description
The XL2596HVS is a 150 KHz fixed frequency buck DC/DC converter, capable of driving a 3A load with high voltage, high efficiency. The XL2596HVS supports wide input operating voltage range of 4.5V ~ 50V and a maximum duty cycle of 100% output.
Key Features
- Operating Voltage：4.5V~50V
- Adjustable, 3.3V, 5.0V and 12V Versions
- Output Adjustable from 1.23V to 48V
- Maximum Duty Cycle 100%
- Feedback Voltage Accuracy ±1.5%
- Minimum Drop Out 1.5V
- Fixed 150KHz Switching Frequency
- 3A Constant Output Current Capability
- Internal Optimize HV Power Transistor
- High efficiency up to 90%
