Datasheet Details
| Part number | XL2596HVP |
|---|---|
| Manufacturer | XLSEMI |
| File Size | 892.21 KB |
| Description | 150KHz 60V 2A Buck DC to DC Converter |
| Datasheet |
 XL2596HVP Datasheet
|
|
|

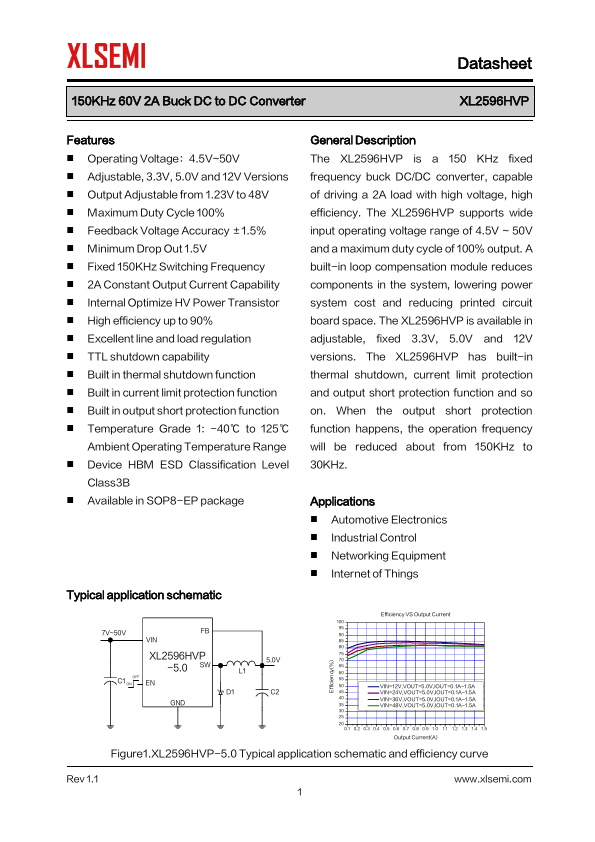

General Description
The XL2596HVP is a 150 KHz fixed frequency buck DC/DC converter, capable of driving a 2A load with high voltage, high efficiency.
The XL2596HVP supports wide input operating voltage range of 4.5V ~ 50V and a maximum duty cycle of 100% output.
Key Features
- Operating Voltage：4.5V~50V.
- Adjustable, 3.3V, 5.0V and 12V Versions.
- Output Adjustable from 1.23V to 48V.
- Maximum Duty Cycle 100%.
- Feedback Voltage Accuracy ±1.5%.
- Minimum Drop Out 1.5V.
- Fixed 150KHz Switching Frequency.
- 2A Constant Output Current Capability.
- Internal Optimize HV Power Transistor.
- High efficiency up to 90%.
- Excellent line and load regulation.
- TTL shutdown capability.
- Built in thermal shutdown function.
- Built.
