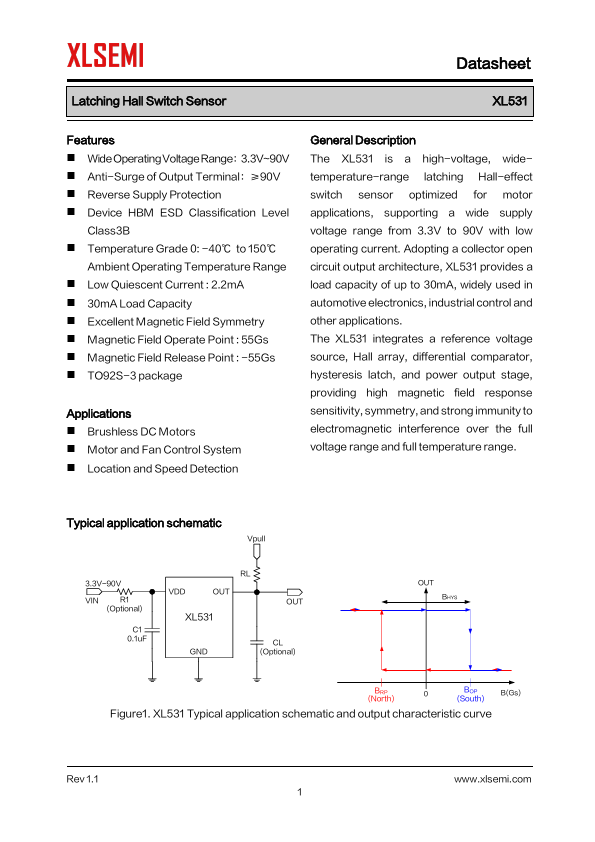

Datasheet Summary
Latching Hall Switch Sensor
Features
- Wide Operating Voltage Range：3.3V~90V
- Anti-Surge of Output Terminal：≥90V
- Reverse Supply Protection
- Device HBM ESD Classification Level
Class3B
- Temperature Grade 0: -40℃ to 150℃
Ambient Operating Temperature Range
- Low Quiescent Current : 2.2mA
- 30mA Load Capacity
- Excellent Magnetic Field Symmetry
- Magnetic Field Operate Point : 55Gs
- Magnetic Field Release Point : -55Gs
- TO92S-3 package
Applications
- Brushless DC Motors
- Motor and Fan Control System
- Location and Speed Detection
General Description The XL531 is a high-voltage, widetemperature-range latching Hall-effect switch sensor optimized for motor...
