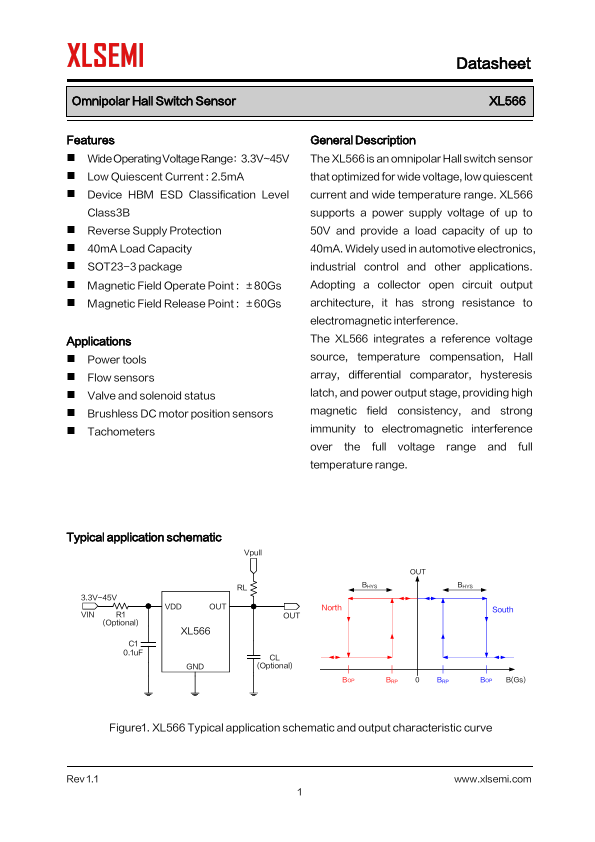

Datasheet Summary
Omnipolar Hall Switch Sensor
Features
- Wide Operating Voltage Range：3.3V~45V
- Low Quiescent Current : 2.5mA
- Device HBM ESD Classification Level
Class3B
- Reverse Supply Protection
- 40mA Load Capacity
- SOT23-3 package
- Magnetic Field Operate Point : ±80Gs
- Magnetic Field Release Point : ±60Gs
Applications
- Power tools
- Flow sensors
- Valve and solenoid status
- Brushless DC motor position sensors
- Tachometers
General Description The XL566 is an omnipolar Hall switch sensor that optimized for wide voltage, low quiescent current and wide temperature range. XL566 supports a power supply voltage of up to 50V and provide a load capacity of up to 40mA. Widely used...
