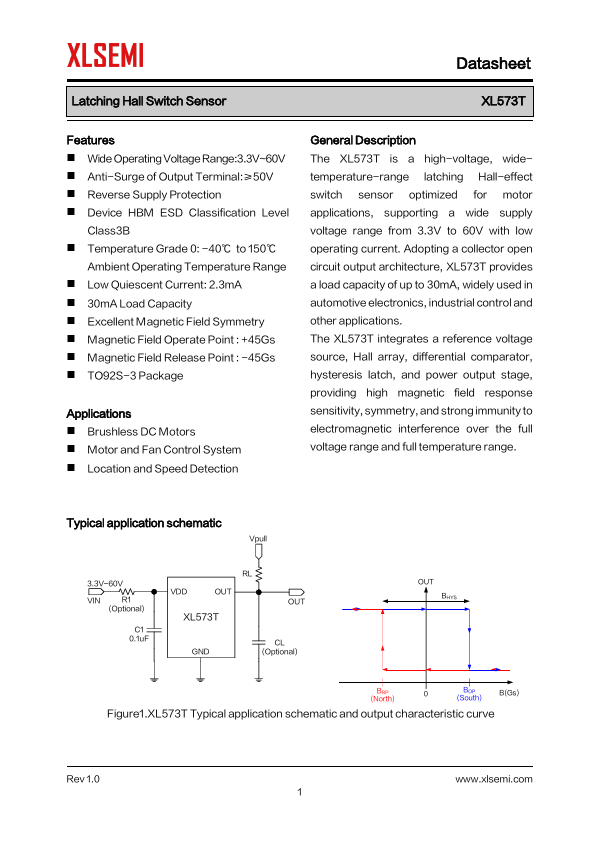

XL573T
Overview
The XL573T is a high-voltage, widetemperature-range latching Hall-effect switch sensor optimized for motor applications, supporting a wide supply voltage range from 3.3V to 60V with low operating current. Adopting a collector open circuit output architecture, XL573T provides a load capacity of up to 30mA, widely used in automotive electronics, industrial control and other applications.
- Wide Operating Voltage Range:3.3V~60V
- Anti-Surge of Output Terminal:≥50V
- Reverse Supply Protection
- Device HBM ESD Classification Level Class3B
- Temperature Grade 0: -40℃ to 150℃ Ambient Operating Temperature Range
- Low Quiescent Current: 2.3mA
- 30mA Load Capacity
- Excellent Magnetic Field Symmetry
- Magnetic Field Operate Point : +45Gs
- Magnetic Field Release Point : -45Gs
