XL591 - Linear Hall Sensor

Description

The XL591 is a linear Hall sensor optimized for wide voltage and temperature ranges, with an output voltage that varies proportionally to the supply voltage, and proportional to the strength of the magnetic field it senses.

Features

Wide Operating Voltage Range：3V~8V.
Low noise output without external capacitor filtering.
Linearity ±5%.
Temperature Grade 1: -40 ℃ to 125 ℃ Ambient Operating Temperature Range.
Device HBM ESD Classification Level Class3B.
TO92S-3 package.

XLSEMI

📥 Download Datasheet

Datasheet Details

Part number	XL591
Manufacturer	XLSEMI
File Size	277.97 KB
Description	Linear Hall Sensor
Datasheet	XL591 Datasheet
Additional preview pages of the XL591 datasheet.

📁 Similar Datasheet

XL551 - LinCMOS process (XINLUDA)

Other Datasheets by XLSEMI

XL5002 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL5003 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL5004 - 600V 0.5A AC TO DC PFM LED Lighting Controller
XL5006 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL534 - Latching Hall Switch Sensor
XL561 - Omnipolar Hall Switch Sensor

Full PDF Text Transcription

Click to expand full text

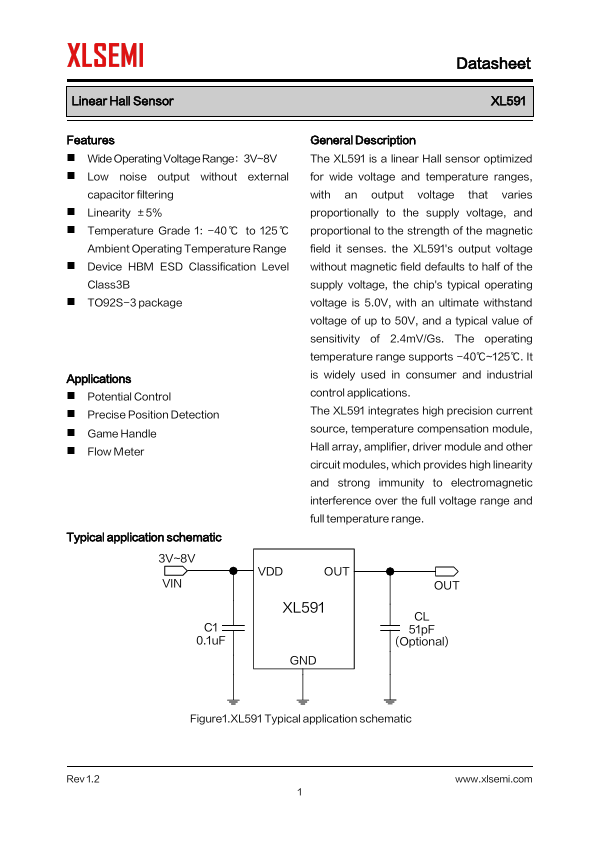

Datasheet Linear Hall Sensor XL591 Features  Wide Operating Voltage Range：3V~8V  Low noise output without external capacitor filtering  Linearity ±5%  Temperature Grade 1: -40 ℃ to 125 ℃ Ambient Operating Temperature Range  Device HBM ESD Classification Level Class3B  TO92S-3 package Applications  Potential Control  Precise Position Detection  Game Handle  Flow Meter Typical application schematic General Description The XL591 is a linear Hall sensor optimized for wide voltage and temperature ranges, with an output voltage that varies proportionally to the supply voltage, and proportional to the strength of the magnetic field it senses. the XL591's output voltage without magnetic field defaults to half of the supply voltage, the chip's typical operating voltage is 5.
