XL592
Overview

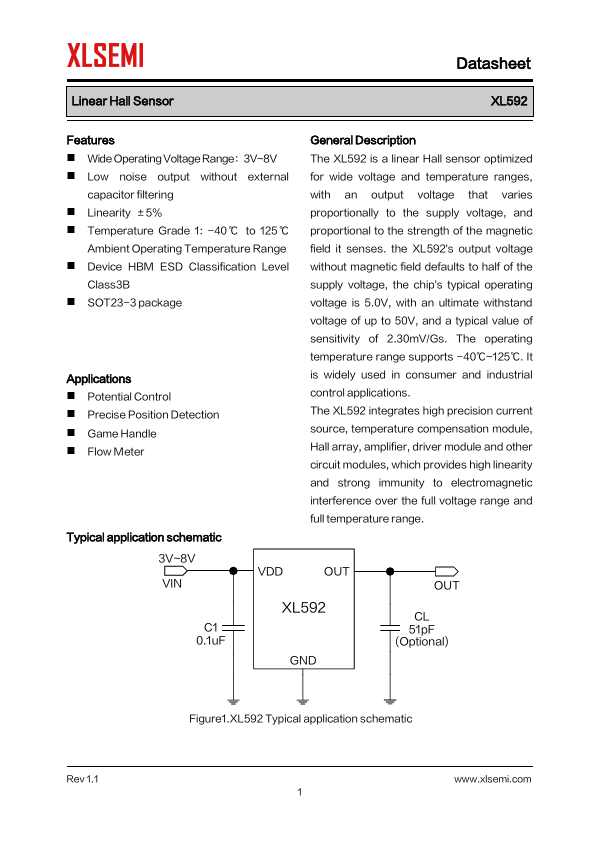

The XL592 is a linear Hall sensor optimized for wide voltage and temperature ranges, with an output voltage that varies proportionally to the supply voltage, and proportional to the strength of the magnetic field it senses. the XL592's output voltage without magnetic field defaults to half of the supply voltage, the chip's typical operating voltage is 5.0V, with an ultimate withstand voltage of up to 50V, and a typical value of sensitivity of 2.30mV/Gs. The operating temperature range supports -40℃~125℃.
- Wide Operating Voltage Range：3V~8V
- Low noise output without external capacitor filtering
- Linearity ±5%
- Temperature Grade 1: -40 ℃ to 125 ℃ Ambient Operating Temperature Range
- Device HBM ESD Classification Level Class3B

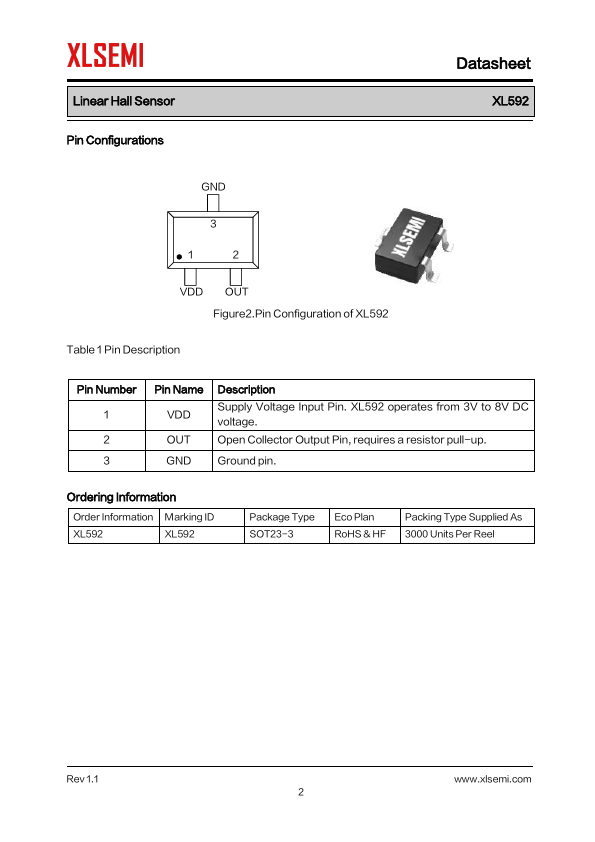

- SOT23-3 package
