XL6013 Datasheet 400khz 60v 2a Switching Current Boost Led Constant Current Driver

Manufacturer: XLSEMI

Overview: Datasheet 400KHz 60V 2A Switching Current Boost LED Constant Current Driver.

Datasheet Details

Part number XL6013
Manufacturer XLSEMI
File Size 327.21 KB
Description 400KHz 60V 2A Switching Current Boost LED Constant Current Driver
Datasheet XL6013-XLSEMI.pdf

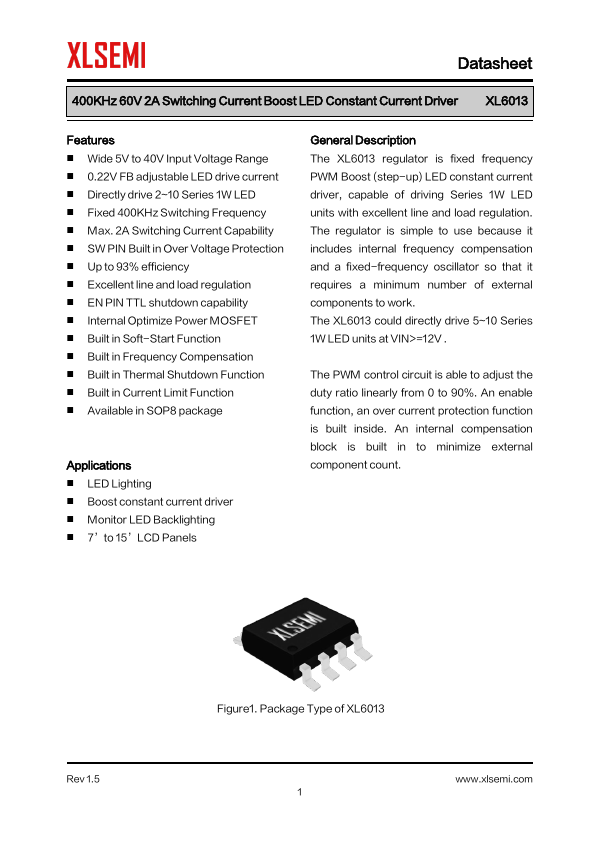

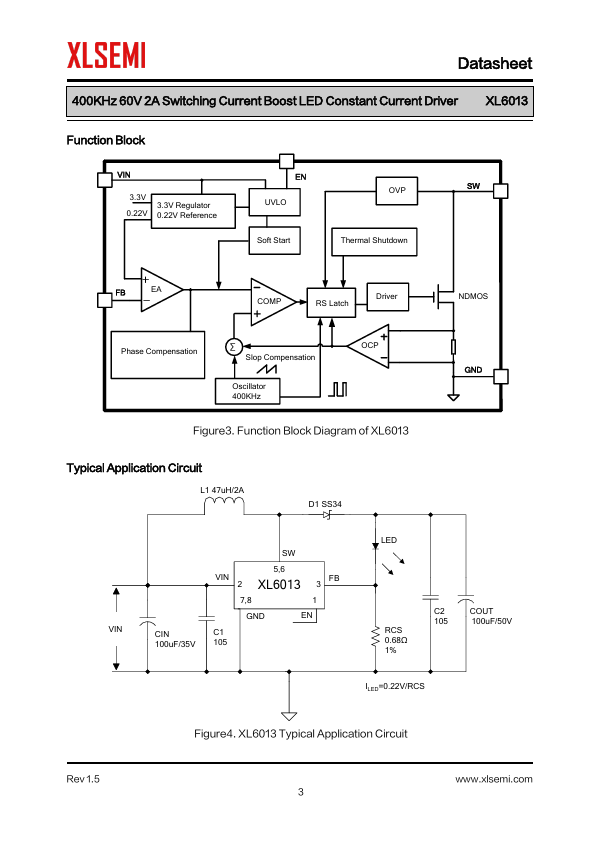

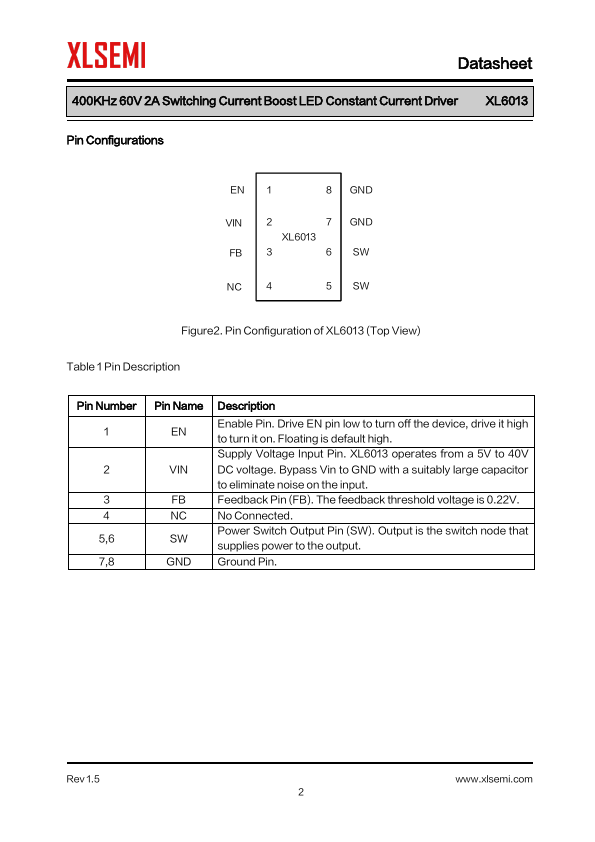

General Description

The XL6013 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W LED units with excellent line and load regulation.

The regulator is simple to use because it includes internal frequency pensation and a fixed-frequency oscillator so that it requires a minimum number of external ponents to work.

The XL6013 could directly drive 5~10 Series 1W LED units at VIN>=12V .

Key Features

  • Wide 5V to 40V Input Voltage Range.
  • 0.22V FB adjustable LED drive current.
  • Directly drive 2~10 Series 1W LED.
  • Fixed 400KHz Switching Frequency.
  • Max. 2A Switching Current Capability.
  • SW PIN Built in Over Voltage Protection.
  • Up to 93% efficiency.
  • Excellent line and load regulation.
  • EN PIN TTL shutdown capability.
  • Internal Optimize Power MOSFET.
  • Built in Soft-Start Function.
  • Built in Frequency Compensation.
  • Built in Thermal Shutdown.
