XL6001 - 400KHz 32V 2A Switching Current Boost LED Constant Current Driver

General Description

The XL6001 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W LED units with excellent line and load regulation.

Key Features

  • Wide 3.6V to 24V Input Voltage Rang.
  • 0.22V Constant Current Sense Voltage.
  • Directly drive 3~8 Series 1W LED.
  • Fixed 400KHz Switching Frequency.
  • Max. 2A Switching Current Capability.
  • Up to 92% efficiency.
  • Excellent line and load regulation.
  • EN PIN TTL shutdown capability.
  • Internal Optimize Power MOSFET.
  • Built in LED Open Protection.
  • Built in Soft-Start Function.
  • Built in Frequency Compensation.
  • Built in Thermal Shutdown Function.

📥 Download Datasheet

Datasheet Details

Part number XL6001
Manufacturer XLSEMI
File Size 222.87 KB
Description 400KHz 32V 2A Switching Current Boost LED Constant Current Driver
Datasheet download datasheet XL6001 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL60 Supercapacitors EATON

Other Datasheets by XLSEMI

Part Number Description
XL6002 2A 150kHz 40V Buck/Buck-Boost LED Constant Current Driver
XL6003 400KHz 60V 2A Switching Current Boost LED Constant Current Driver
XL6004 400KHz 60V 3A Switching Current Boost LED Constant Current Driver
XL6005 180KHz 60V 4A Switching Current Boost LED Constant Current Driver
XL6006 180KHz 60V 5A Switching Current Boost LED Constant Current Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

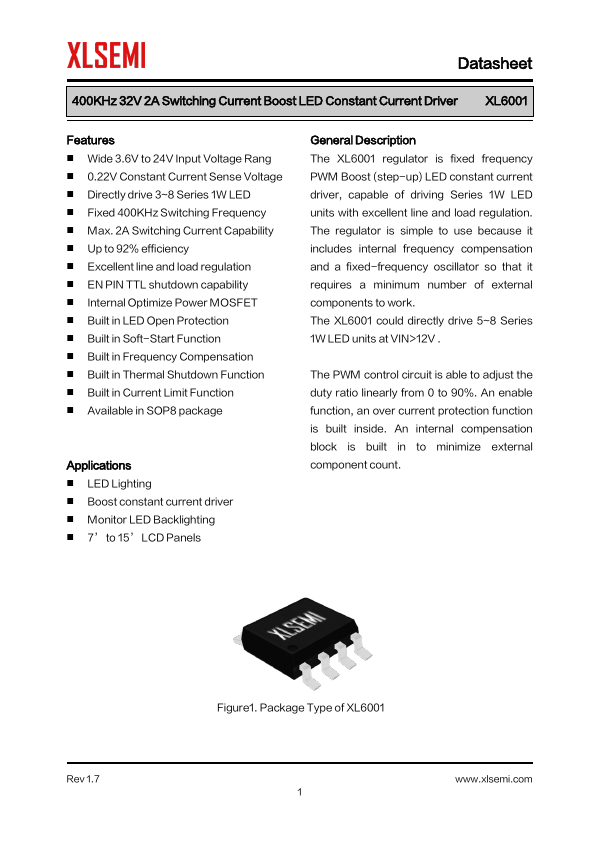

Datasheet 400KHz 32V 2A Switching Current Boost LED Constant Current Driver XL6001 Features  Wide 3.6V to 24V Input Voltage Rang  0.22V Constant Current Sense Voltage  Directly drive 3~8 Series 1W LED  Fixed 400KHz Switching Frequency  Max.
