XL6006 - 180KHz 60V 5A Switching Current Boost LED Constant Current Driver

General Description

The XL6006 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation.

Key Features

  • n n n n n n n n n n n n n n n XL6006 General.

📥 Download Datasheet

Datasheet Details

Part number XL6006
Manufacturer Xlsemi
File Size 295.50 KB
Description 180KHz 60V 5A Switching Current Boost LED Constant Current Driver
Datasheet download datasheet XL6006 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL60 Supercapacitors EATON

Other Datasheets by Xlsemi

Part Number Description
XL6001 400KHz 32V 2A Switching Current Boost LED Constant Current Driver
XL6002 2A 150kHz 40V Buck/Buck-Boost LED Constant Current Driver
XL6003 400KHz 60V 2A Switching Current Boost LED Constant Current Driver
XL6004 400KHz 60V 3A Switching Current Boost LED Constant Current Driver
XL6005 180KHz 60V 4A Switching Current Boost LED Constant Current Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

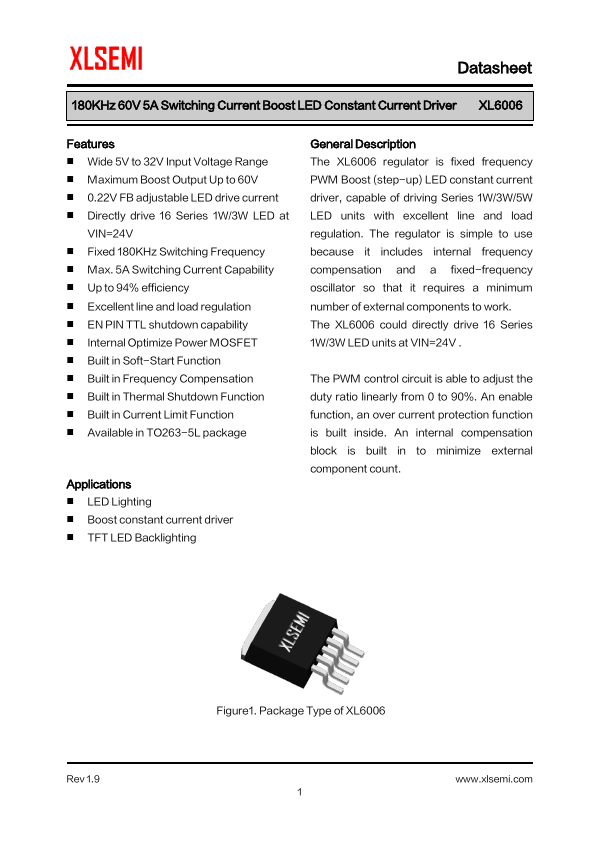

Datasheet 180KHz 60V 5A Switching Current Boost LED Constant Current Driver Features n n n n n n n n n n n n n n n XL6006 General Description The XL6006 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6006 could directly drive 16 Series 1W/3W LED units at VIN=24V . The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90%. An enable function, an over current protection function is built inside.
